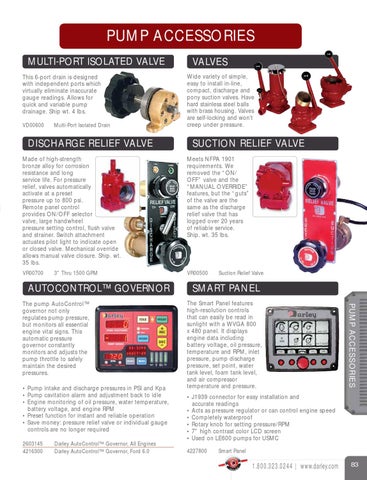

PUMP ACCESSORIES MULTI-PORT ISOLATED VALVE This 6-port drain is designed with independent ports which virtually eliminate inaccurate gauge readings. Allows for quick and variable pump drainage. Ship wt. 4 lbs. VD00600
Multi-Port Isolated Drain
DISCHARGE RELIEF VALVE
VALVES Wide variety of simple, easy to install in-line, compact, discharge and pony suction valves. Have hard stainless steel balls with brass housing. Valves are self-locking and won’t creep under pressure.
SUCTION RELIEF VALVE
Made of high-strength bronze alloy for corrosion resistance and long service life. For pressure relief, valves automatically activate at a preset pressure up to 800 psi. Remote panel control provides ON/OFF selector valve, large handwheel pressure setting control, flush valve and strainer. Switch attachment actuates pilot light to indicate open or closed valve. Mechanical override allows manual valve closure. Ship. wt. 35 lbs.
Meets NFPA 1901 requirements. We removed the “ON/ OFF” valve and the “MANUAL OVERRIDE” features, but the “guts” of the valve are the same as the discharge relief valve that has logged over 20 years of reliable service. Ship. wt. 35 lbs.
VR00700
VR00500
3" Thru 1500 GPM
AUTOCONTROL™ GOVERNOR
• Pump intake and discharge pressures in PSI and Kpa • Pump cavitation alarm and adjustment back to idle • Engine monitoring of oil pressure, water temperature, battery voltage, and engine RPM • Preset function for instant and reliable operation • Save money: pressure relief valve or individual gauge controls are no longer required 2603145 4216300
Darley AutoControl™ Governor, All Engines Darley AutoControl™ Governor, Ford 6.0
SMART PANEL The Smart Panel features high-resolution controls that can easily be read in sunlight with a WVGA 800 x 480 panel. It displays engine data including battery voltage, oil pressure, temperature and RPM, inlet pressure, pump discharge pressure, set point, water tank level, foam tank level, and air compressor temperature and pressure.
PUMP ACCESSORIES
The pump AutoControl™ governor not only regulates pump pressure, but monitors all essential engine vital signs. This automatic pressure governor constantly monitors and adjusts the pump throttle to safely maintain the desired pressures.
Suction Relief Valve
• J1939 connector for easy installation and accurate readings • Acts as pressure regulator or can control engine speed • Completely waterproof • Rotary knob for setting pressure/RPM • 7" high contrast color LCD screen • Used on LE600 pumps for USMC 4227800
Smart Panel
1.800.323.0244 | www.darley.com
