PORTABLE - GASOLINE
001_Portable - Gas Pumps
4/1/13
10:07 AM
Page 6

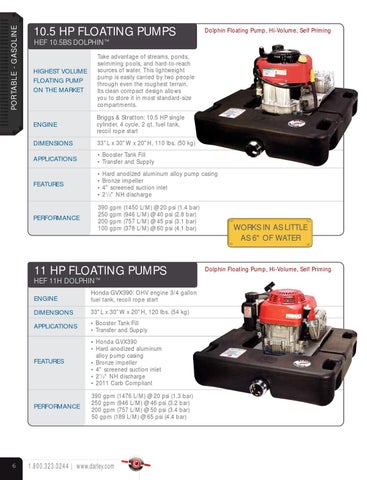

10.5 HP FLOATING PUMPS HEF 10.5BS DOLPHIN™
HIGHEST VOLUME FLOATING PUMP ON THE MARKET
Take advantage of streams, ponds, swimming pools, and hard-to-reach sources of water. This lightweight pump is easily carried by two people through even the roughest terrain. Its clean compact design allows you to store it in most standard-size compartments.
ENGINE
Briggs & Stratton: 10.5 HP single cylinder, 4 cycle, 2 qt. fuel tank, recoil rope start
DIMENSIONS
33"L x 30"W x 20"H, 110 lbs. (50 kg)
APPLICATIONS
• Booster Tank Fill • Transfer and Supply
FEATURES
• Hard anodized aluminum alloy pump casing • Bronze impeller • 4" screened suction inlet • 21/2" NH discharge
PERFORMANCE
390 gpm (1450 L/M) @ 20 psi (1.4 bar) 250 gpm (946 L/M) @ 40 psi (2.8 bar) 200 gpm (757 L/M) @ 45 psi (3.1 bar) 100 gpm (378 L/M) @ 60 psi (4.1 bar)
11 HP FLOATING PUMPS HEF 11H DOLPHIN™
6
Dolphin Floating Pump, Hi-Volume, Self Priming
ENGINE
Honda GVX390: OHV engine 3/4 gallon fuel tank, recoil rope start
DIMENSIONS
33"L x 30"W x 20"H, 120 lbs. (54 kg)
APPLICATIONS
• Booster Tank Fill • Transfer and Supply
FEATURES
• Honda GVX390 • Hard anodized aluminum alloy pump casing • Bronze impeller • 4" screened suction inlet • 21/2" NH discharge • 2011 Carb Compliant
PERFORMANCE
390 gpm (1476 L/M) @ 20 psi (1.3 bar) 250 gpm (946 L/M) @ 46 psi (3.2 bar) 200 gpm (757 L/M) @ 50 psi (3.4 bar) 50 gpm (189 L/M) @ 65 psi (4.4 bar)
1.800.323.0244 | www.darley.com
WORKS IN AS LITTLE AS 6" OF WATER
Dolphin Floating Pump, Hi-Volume, Self Priming
