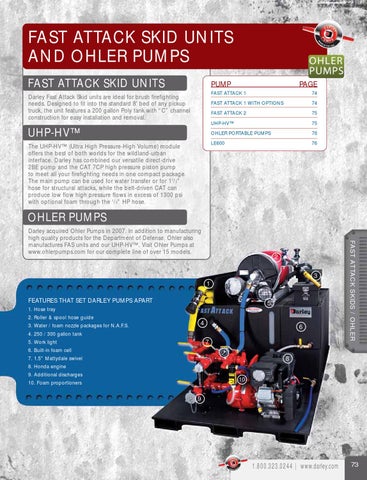

FAST ATTACK SKID UNITS AND OHLER PUMPS FAST ATTACK SKID UNITS
PUMP
Darley Fast Attack Skid units are ideal for brush firefighting needs. Designed to fit into the standard 8' bed of any pickup truck, the unit features a 200 gallon Poly tank with “C” channel construction for easy installation and removal.
UHP-HV™ The UHP-HV™ (Ultra High Pressure-High Volume) module offers the best of both worlds for the wildland-urban interface. Darley has combined our versatile direct-drive 2BE pump and the CAT 7CP high pressure piston pump to meet all your firefighting needs in one compact package. The main pump can be used for water transfer or for 11/2" hose for structural attacks, while the belt-driven CAT can produce low flow high pressure flows in excess of 1300 psi with optional foam through the 1/2" HP hose.
PAGE
FAST ATTACK 1
74
FAST ATTACK 1 WITH OPTIONS
74
FAST ATTACK 2
75
UHP-HV™
75
OHLER PORTABLE PUMPS
76
LE600
76
OHLER PUMPS
2 3 1
FEATURES THAT SET DARLEY PUMPS APART
5
1. Hose tray 2. Roller & spool hose guide 3. Water / foam nozzle packages for N.A.F.S.
4
6
4. 250 / 300 gallon tank
7
5. Work light
FAST ATTACK SKIDS / OHLER
Darley acquired Ohler Pumps in 2007. In addition to manufacturing high quality products for the Department of Defense, Ohler also manufactures FAS units and our UHP-HV™. Visit Ohler Pumps at www.ohlerpumps.com for our complete line of over 15 models.
6. Built-in foam cell
8
7. 1.5" Mattydale swivel 8. Honda engine 9. Additional discharges
10
10. Foam proportioners
9
1.800.323.0244 | www.darley.com
73
