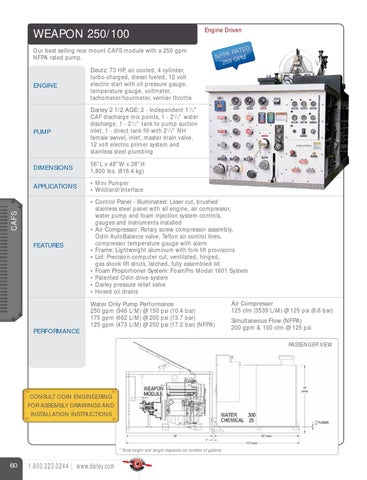

WEAPON 250/100
Engine Driven
Our best selling rear mount CAFS module with a 250 gpm NFPA rated pump.
D RATE A P F N GPM 250
PUMP
Darley 2 1/2 AGE: 2 - Independent 11/2" CAF discharge mix points, 1 - 21/2" water discharge, 1 - 21/2" tank to pump suction inlet, 1 - direct tank fill with 21/2" NH female swivel, inlet, master drain valve, 12 volt electric primer system and stainless steel plumbing
DIMENSIONS
56"L x 48"W x 38"H 1,800 lbs. (816.4 kg)
APPLICATIONS
• Mini Pumper • Wildland/Interface
FEATURES
• Control Panel - Illuminated: Laser cut, brushed stainless steel panel with all engine, air compressor, water pump and foam injection system controls, gauges and instruments installed • Air Compressor: Rotary screw compressor assembly, Odin AutoBalance valve, Teflon air control lines, compressor temperature gauge with alarm • Frame: Lightweight aluminum with fork lift provisions • Lid: Precision computer cut, ventilated, hinged, gas shock lift struts, latched, fully assembled lid • Foam Proportioner System: FoamPro Model 1601 System • Patented Odin drive system • Darley pressure relief valve • Hosed oil drains
CAFS
ENGINE
Deutz: 73 HP, air cooled, 4 cylinder, turbo-charged, diesel fueled, 12 volt electric start with oil pressure gauge, temperature gauge, voltmeter, tachometer/hourmeter, vernier throttle
Water Only Pump Performance 250 gpm (946 L/M) @ 150 psi (10.4 bar) 175 gpm (662 L/M) @ 200 psi (13.7 bar) 125 gpm (473 L/M) @ 250 psi (17.2 bar) (NFPA)
PERFORMANCE
Air Compressor 125 cfm (3539 L/M) @ 125 psi (8.6 bar) Simultaneous Flow (NFPA) 200 gpm & 100 cfm @ 125 psi PASSENGER VIEW
CONSULT ODIN ENGINEERING FOR ASSEMBLY DRAWINGS AND INSTALLATION INSTRUCTIONS
* Total height and length depends on number of gallons
