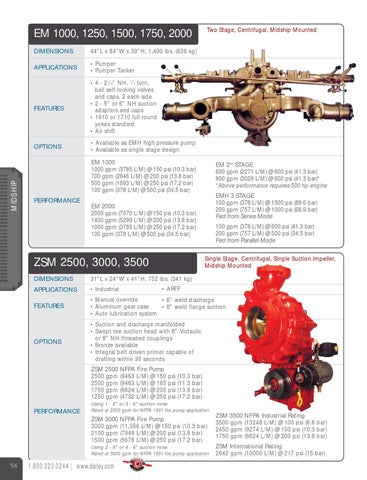

MIDSHIP
EM 1000, 1250, 1500, 1750, 2000 DIMENSIONS
44"L x 84"W x 39"H, 1,400 lbs. (636 kg)
APPLICATIONS
• Pumper • Pumper Tanker
FEATURES
• 4 - 21/2" NH, 1/4 turn, ball self-locking valves and caps, 2 each side • 2 - 5" or 6" NH suction adapters and caps • 1610 or 1710 full round yokes standard • Air shift
OPTIONS
• Available as EMH high pressure pump • Available as single stage design
Two Stage, Centrifugal, Midship Mounted
EM 1000 1000 gpm (3785 L/M) @ 150 psi (10.3 bar) 700 gpm (2646 L/M) @ 200 psi (13.8 bar) 500 gpm (1893 L/M) @ 250 psi (17.2 bar) 100 gpm (378 L/M) @ 500 psi (34.5 bar)
PERFORMANCE
EM 2nd STAGE 600 gpm (2271 L/M) @ 600 psi (41.3 bar) 800 gpm (3028 L/M) @ 600 psi (41.3 bar)* *Above performance requires 500 hp engine EMH 3 STAGE 100 gpm (378 L/M) @ 1300 psi (89.6 bar) 200 gpm (757 L/M) @ 1000 psi (68.9 bar) Fed from Series Mode
EM 2000 2000 gpm (7570 L/M) @ 150 psi (10.3 bar) 1400 gpm (5299 L/M) @ 200 psi (13.8 bar) 1000 gpm (3785 L/M) @ 250 psi (17.2 bar) 100 gpm (378 L/M) @ 500 psi (34.5 bar)
100 gpm (378 L/M) @ 600 psi (41.3 bar) 200 gpm (757 L/M) @ 500 psi (34.5 bar) Fed from Parallel Mode Single Stage, Centrifugal, Single Suction Impeller, Midship Mounted
ZSM 2500, 3000, 3500 DIMENSIONS
31"L x 24"W x 41"H, 752 lbs. (341 kg)
APPLICATIONS
• Industrial
FEATURES
• Manual override • 6" weld discharge • Aluminum gear case • 8" weld flange suction • Auto lubrication system
OPTIONS
• Suction and discharge manifolded • Swept tee suction head with 8" Victaulic or 8" NH threaded couplings • Bronze available • Integral belt driven primer capable of drafting within 30 seconds
• ARFF
ZSM 2500 NFPA Fire Pump 2500 gpm (9463 L/M) @ 150 psi (10.3 bar) 2500 gpm (9463 L/M) @ 165 psi (11.3 bar) 1750 gpm (6624 L/M) @ 200 psi (13.8 bar) 1250 gpm (4732 L/M) @ 250 psi (17.2 bar) Using 1 - 8" or 3 - 6" suction hose
PERFORMANCE
Rated at 2500 gpm for NFPA 1901 fire pump application
ZSM 3000 NFPA Fire Pump 3000 gpm (11,356 L/M) @ 150 psi (10.3 bar) 2100 gpm (7949 L/M) @ 200 psi (13.8 bar) 1500 gpm (5678 L/M) @ 250 psi (17.2 bar) Using 2 - 8" or 4 - 6" suction hose Rated at 3000 gpm for NFPA 1901 fire pump application
56
1.800.323.0244 | www.darley.com
ZSM 3500 NFPA Industrial Rating 3500 gpm (13248 L/M) @ 100 psi (6.8 bar) 2450 gpm (9274 L/M) @ 150 psi (10.3 bar) 1750 gpm (6624 L/M) @ 200 psi (13.8 bar) ZSM International Rating 2642 gpm (10000 L/M) @ 217 psi (15 bar)
