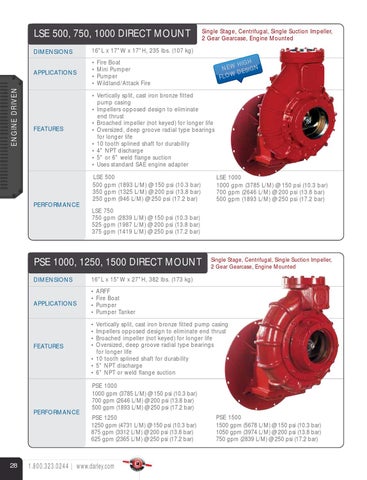

ENGINE DRIVEN
LSE 500, 750, 1000 DIRECT MOUNT
Single Stage, Centrifugal, Single Suction Impeller, 2 Gear Gearcase, Engine Mounted
DIMENSIONS
16"L x 17"W x 17"H, 235 lbs. (107 kg)
APPLICATIONS
• Fire Boat • Mini Pumper • Pumper • Wildland/Attack Fire
FEATURES
• Vertically split, cast iron bronze fitted pump casing • Impellers opposed design to eliminate end thrust • Broached impeller (not keyed) for longer life • Oversized, deep groove radial type bearings for longer life • 10 tooth splined shaft for durability • 4" NPT discharge • 5" or 6" weld flange suction • Uses standard SAE engine adapter
PERFORMANCE
LSE 500 500 gpm (1893 L/M) @ 150 psi (10.3 bar) 350 gpm (1325 L/M) @ 200 psi (13.8 bar) 250 gpm (946 L/M) @ 250 psi (17.2 bar)
LSE 1000 1000 gpm (3785 L/M) @ 150 psi (10.3 bar) 700 gpm (2646 L/M) @ 200 psi (13.8 bar) 500 gpm (1893 L/M) @ 250 psi (17.2 bar)
LSE 750 750 gpm (2839 L/M) @ 150 psi (10.3 bar) 525 gpm (1987 L/M) @ 200 psi (13.8 bar) 375 gpm (1419 L/M) @ 250 psi (17.2 bar)
PSE 1000, 1250, 1500 DIRECT MOUNT
Single Stage, Centrifugal, Single Suction Impeller, 2 Gear Gearcase, Engine Mounted
DIMENSIONS
16"L x 15"W x 27"H, 382 lbs. (173 kg)
APPLICATIONS
• ARFF • Fire Boat • Pumper • Pumper Tanker
FEATURES
• Vertically split, cast iron bronze fitted pump casing • Impellers opposed design to eliminate end thrust • Broached impeller (not keyed) for longer life • Oversized, deep groove radial type bearings for longer life • 10 tooth splined shaft for durability • 5" NPT discharge • 6" NPT or weld flange suction
PERFORMANCE
28
HIGH NEW ESIGN D FLOW
PSE 1000 1000 gpm (3785 L/M) @ 150 psi (10.3 bar) 700 gpm (2646 L/M) @ 200 psi (13.8 bar) 500 gpm (1893 L/M) @ 250 psi (17.2 bar) PSE 1250 1250 gpm (4731 L/M) @ 150 psi (10.3 bar) 875 gpm (3312 L/M) @ 200 psi (13.8 bar) 625 gpm (2365 L/M) @ 250 psi (17.2 bar)
1.800.323.0244 | www.darley.com
PSE 1500 1500 gpm (5678 L/M) @ 150 psi (10.3 bar) 1050 gpm (3974 L/M) @ 200 psi (13.8 bar) 750 gpm (2839 L/M) @ 250 psi (17.2 bar)
