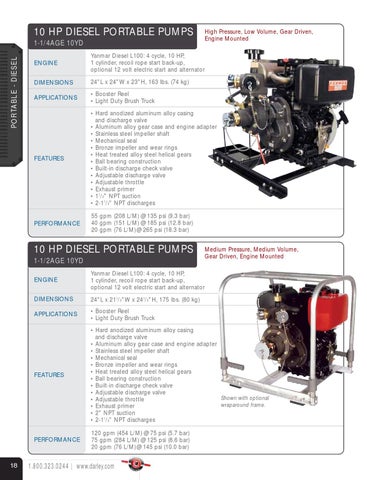

10 HP DIESEL PORTABLE PUMPS PORTABLE - DIESEL
1-1/4AGE 10YD ENGINE
Yanmar Diesel L100: 4 cycle, 10 HP, 1 cylinder, recoil rope start back-up, optional 12 volt electric start and alternator
DIMENSIONS
24"L x 24"W x 23"H, 163 lbs. (74 kg)
APPLICATIONS
• Booster Reel • Light Duty Brush Truck
FEATURES
• Hard anodized aluminum alloy casing and discharge valve • Aluminum alloy gear case and engine adapter • Stainless steel impeller shaft • Mechanical seal • Bronze impeller and wear rings • Heat treated alloy steel helical gears • Ball bearing construction • Built-in discharge check valve • Adjustable discharge valve • Adjustable throttle • Exhaust primer • 11/2" NPT suction • 2-11/2" NPT discharges
PERFORMANCE
55 gpm (208 L/M) @ 135 psi (9.3 bar) 40 gpm (151 L/M) @ 185 psi (12.8 bar) 20 gpm (76 L/M) @ 265 psi (18.3 bar)
10 HP DIESEL PORTABLE PUMPS 1-1/2AGE 10YD
18
High Pressure, Low Volume, Gear Driven, Engine Mounted
Medium Pressure, Medium Volume, Gear Driven, Engine Mounted
ENGINE
Yanmar Diesel L100: 4 cycle, 10 HP, 1 cylinder, recoil rope start back-up, optional 12 volt electric start and alternator
DIMENSIONS
24"L x 211/2"W x 241/2"H, 175 lbs. (80 kg)
APPLICATIONS
• Booster Reel • Light Duty Brush Truck
FEATURES
• Hard anodized aluminum alloy casing and discharge valve • Aluminum alloy gear case and engine adapter • Stainless steel impeller shaft • Mechanical seal • Bronze impeller and wear rings • Heat treated alloy steel helical gears • Ball bearing construction • Built-in discharge check valve • Adjustable discharge valve Shown with optional • Adjustable throttle wraparound frame. • Exhaust primer • 2" NPT suction • 2-11/2" NPT discharges
PERFORMANCE
120 gpm (454 L/M) @ 75 psi (5.7 bar) 75 gpm (284 L/M) @ 125 psi (8.6 bar) 20 gpm (76 L/M) @ 145 psi (10.0 bar)
