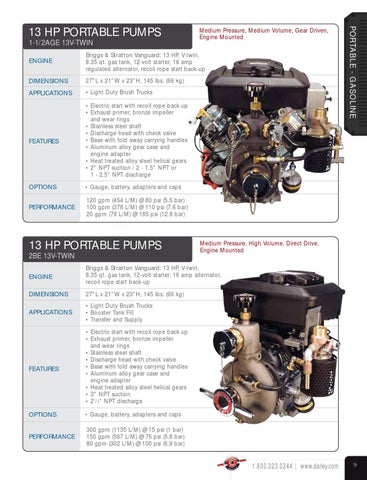

1-1/2AGE 13V-TWIN
Medium Pressure, Medium Volume, Gear Driven, Engine Mounted
ENGINE
Briggs & Stratton Vanguard: 13 HP, V-twin, 8.35 qt. gas tank, 12-volt starter, 16 amp regulated alternator, recoil rope start back-up
DIMENSIONS
27"L x 21"W x 23"H, 145 lbs. (66 kg)
APPLICATIONS
• Light Duty Brush Trucks
FEATURES
• Electric start with recoil rope back up • Exhaust primer, bronze impeller and wear rings • Stainless steel shaft • Discharge head with check valve • Base with fold away carrying handles • Aluminum alloy gear case and engine adapter • Heat treated alloy steel helical gears • 2" NPT suction / 2 - 1.5" NPT or 1 - 2.5" NPT discharge
OPTIONS
• Gauge, battery, adapters and caps
PERFORMANCE
120 gpm (454 L/M) @ 80 psi (5.5 bar) 100 gpm (378 L/M) @ 110 psi (7.6 bar) 20 gpm (76 L/M) @ 185 psi (12.8 bar)
13 HP PORTABLE PUMPS 2BE 13V-TWIN
PORTABLE - GASOLINE
13 HP PORTABLE PUMPS
Medium Pressure, High Volume, Direct Drive, Engine Mounted
ENGINE
Briggs & Stratton Vanguard: 13 HP, V-twin, 8.35 qt. gas tank, 12-volt starter, 16 amp alternator, recoil rope start back-up
DIMENSIONS
27"L x 21"W x 23"H, 145 lbs. (66 kg)
APPLICATIONS
• Light Duty Brush Trucks • Booster Tank Fill • Transfer and Supply
FEATURES
• Electric start with recoil rope back up • Exhaust primer, bronze impeller and wear rings • Stainless steel shaft • Discharge head with check valve • Base with fold away carrying handles • Aluminum alloy gear case and engine adapter • Heat treated alloy steel helical gears • 3" NPT suction • 21/2" NPT discharge
OPTIONS
• Gauge, battery, adapters and caps
PERFORMANCE
300 gpm (1135 L/M) @ 15 psi (1 bar) 150 gpm (567 L/M) @ 75 psi (5.8 bar) 80 gpm (302 L/M) @ 100 psi (6.9 bar)
