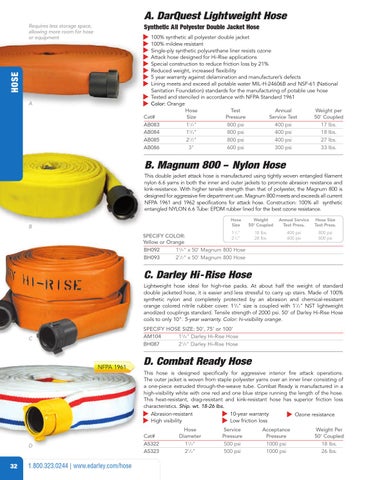

A. DarQuest Lightweight Hose Requires less storage space, allowing more room for hose or equipment
4100% synthetic all polyester double jacket 4100% mildew resistant 4Single-ply synthetic polyurethane liner resists ozone 4Attack hose designed for Hi-Rise applications 4Special construction to reduce friction loss by 21% 4Reduced weight, increased flexibility 45 year warranty against delamination and manufacturer’s defects 4Lining meets and exceed all potable water MIL-H-24606B and NSF-61 (National Sanitation Foundation) standards for the manufacturing of potable use hose 4Tested and stenciled in accordance with NFPA Standard 1961 4Color: Orange
HOSE
Synthetic All Polyester Double Jacket Hose
A
Cat# AB083 AB084 AB085 AB086
Hose Size 11/2" 13/4" 21/2" 3"
Test Pressure 800 psi 800 psi 800 psi 600 psi
Annual Service Test 400 psi 400 psi 400 psi 300 psi
Weight per 50' Coupled 17 lbs. 18 lbs. 27 lbs. 33 lbs.
B. Magnum 800 – Nylon Hose This double jacket attack hose is manufactured using tightly woven entangled filament nylon 6.6 yarns in both the inner and outer jackets to promote abrasion resistance and kink-resistance. With higher tensile strength than that of polyester, the Magnum 800 is designed for aggressive fire department use. Magnum 800 meets and exceeds all current NFPA 1961 and 1962 specifications for attack hose. Construction: 100% all synthetic entangled NYLON 6.6 Tube: EPDM rubber lined for the best ozone resistance. B
Hose Size
Weight 50’ Coupled
Annual Service Test Press.
Hose Size Test Press.
13/4"
18 lbs. 28 lbs.
400 psi 400 psi
800 psi 800 psi
SPECIFY COLOR: 21/2" Yellow or Orange BH092 13/4" x 50' Magnum 800 Hose BH093 21/2" x 50' Magnum 800 Hose
C. Darley Hi-Rise Hose Lightweight hose ideal for high-rise packs. At about half the weight of standard double jacketed hose, it is easier and less stressful to carry up stairs. Made of 100% synthetic nylon and completely protected by an abrasion and chemical-resistant orange colored nitrile rubber cover. 13/4" size is coupled with 11/2" NST lightweight anodized couplings standard. Tensile strength of 2000 psi. 50' of Darley Hi-Rise Hose coils to only 10". 5-year warranty. Color: hi-visibility orange. SPECIFY HOSE SIZE: 50', 75' or 100' AM104 13/4" Darley Hi-Rise Hose BH087 21/2" Darley Hi-Rise Hose
C
NFPA 1961
D. Combat Ready Hose This hose is designed specifically for aggressive interior fire attack operations. The outer jacket is woven from staple polyester yarns over an inner liner consisting of a one-piece extruded through-the-weave tube. Combat Ready is manufactured in a high-visibility white with one red and one blue stripe running the length of the hose. This heat-resistant, drag-resistant and kink-resistant hose has superior friction loss characteristics. Ship. wt. 18-26 lbs. 10-year warranty Abrasion-resistant Ozone resistance Low friction loss High visibility
4 4
4 4 D
32
1.800.323.0244 | www.edarley.com/hose
Cat# AS322 AS323
Hose Diameter 13/4" 21/2"
Service Pressure 500 psi 500 psi
4
Acceptance Pressure 1000 psi 1000 psi
Weight Per 50' Coupled 18 lbs. 26 lbs.
