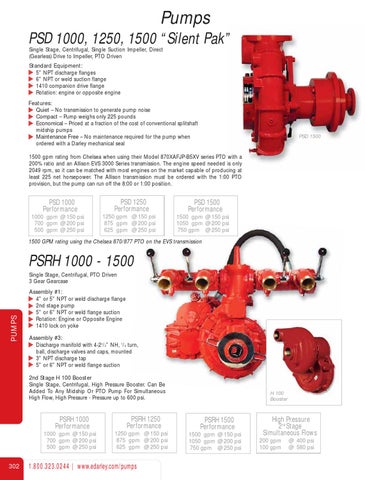

Pumps PSD 1000, 1250, 1500 “Silent Pak” Single Stage, Centrifugal, Single Suction Impeller, Direct (Gearless) Drive to Impeller, PTO Driven Standard Equipment: 5" NPT discharge flanges 6" NPT or weld suction flange 1410 companion drive flange Rotation: engine or opposite engine Features: Quiet – No transmission to generate pump noise Compact – Pump weighs only 225 pounds Economical – Priced at a fraction of the cost of conventional splitshaft midship pumps Maintenance Free – No maintenance required for the pump when ordered with a Darley mechanical seal
PSD 1500
1500 gpm rating from Chelsea when using their Model 870XAFJP-B5XV series PTO with a 200% ratio and an Allison EVS 3000 Series transmission. The engine speed needed is only 2049 rpm, so it can be matched with most engines on the market capable of producing at least 225 net horsepower. The Allison transmission must be ordered with the 1:00 PTO provision, but the pump can run off the 8:00 or 1:00 position.
PSD 1000 Performance 1000 gpm @ 150 psi 700 gpm @ 200 psi 500 gpm @ 250 psi
PSD 1250 Performance 1250 gpm @ 150 psi 875 gpm @ 200 psi 625 gpm @ 250 psi
PSD 1500 Performance 1500 gpm @ 150 psi 1050 gpm @ 200 psi 750 gpm @ 250 psi
1500 GPM rating using the Chelsea 870/877 PTO on the EVS transmission
PSRH 1000 - 1500
PUMPS
Single Stage, Centrifugal, PTO Driven 3 Gear Gearcase Assembly #1: 4" or 5" NPT or weld discharge flange 2nd stage pump 5" or 6" NPT or weld flange suction Rotation: Engine or Opposite Engine 1410 lock on yoke Assembly #3: Discharge manifold with 4-21/2" NH, 1/4 turn, ball, discharge valves and caps, mounted 3" NPT discharge tap 5" or 6" NPT or weld flange suction 2nd Stage H 100 Booster Single Stage, Centrifugal, High Pressure Booster. Can Be Added To Any Midship Or PTO Pump For Simultaneous High Flow, High Pressure - Pressure up to 600 psi.
PSRH 1000 Performance 1000 gpm @ 150 psi 700 gpm @ 200 psi 500 gpm @ 250 psi
302
PSRH 1250 Performance 1250 gpm @ 150 psi 875 gpm @ 200 psi 625 gpm @ 250 psi
1.800.323.0244 | www.edarley.com/pumps
H 100 Booster
PSRH 1500 Performance 1500 gpm @ 150 psi 1050 gpm @ 200 psi 750 gpm @ 250 psi
High Pressure 2nd Stage Simultaneous Flows 200 gpm 100 gpm
@ 400 psi @ 580 psi
