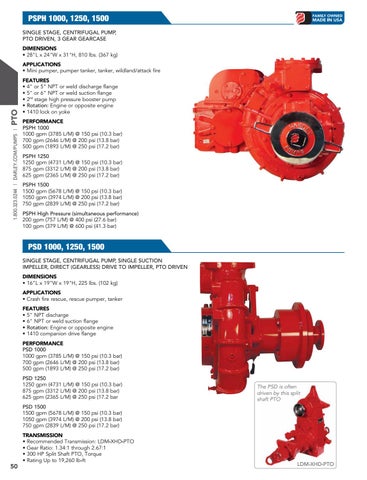

PSPH 1000, 1250, 1500 SINGLE STAGE, CENTRIFUGAL PUMP, PTO DRIVEN, 3 GEAR GEARCASE DIMENSIONS • 28"L x 24"W x 31"H, 810 lbs. (367 kg)
1.800.323.0244 | DARLEY.COM/PUMPS |
PTO
APPLICATIONS • Mini pumper, pumper tanker, tanker, wildland/attack fire FEATURES • 4" or 5" NPT or weld discharge flange • 5" or 6" NPT or weld suction flange • 2nd stage high pressure booster pump • Rotation: Engine or opposite engine • 1410 lock on yoke PERFORMANCE PSPH 1000 1000 gpm (3785 L/M) @ 150 psi (10.3 bar) 700 gpm (2646 L/M) @ 200 psi (13.8 bar) 500 gpm (1893 L/M) @ 250 psi (17.2 bar) PSPH 1250 1250 gpm (4731 L/M) @ 150 psi (10.3 bar) 875 gpm (3312 L/M) @ 200 psi (13.8 bar) 625 gpm (2365 L/M) @ 250 psi (17.2 bar) PSPH 1500 1500 gpm (5678 L/M) @ 150 psi (10.3 bar) 1050 gpm (3974 L/M) @ 200 psi (13.8 bar) 750 gpm (2839 L/M) @ 250 psi (17.2 bar) PSPH High Pressure (simultaneous performance) 200 gpm (757 L/M) @ 400 psi (27.6 bar) 100 gpm (379 L/M) @ 600 psi (41.3 bar)
PSD 1000, 1250, 1500 SINGLE STAGE, CENTRIFUGAL PUMP, SINGLE SUCTION IMPELLER, DIRECT (GEARLESS) DRIVE TO IMPELLER, PTO DRIVEN DIMENSIONS • 16"L x 19"W x 19"H, 225 lbs. (102 kg) APPLICATIONS • Crash fire rescue, rescue pumper, tanker FEATURES • 5" NPT discharge • 6" NPT or weld suction flange • Rotation: Engine or opposite engine • 1410 companion drive flange PERFORMANCE PSD 1000 1000 gpm (3785 L/M) @ 150 psi (10.3 bar) 700 gpm (2646 L/M) @ 200 psi (13.8 bar) 500 gpm (1893 L/M) @ 250 psi (17.2 bar) PSD 1250 1250 gpm (4731 L/M) @ 150 psi (10.3 bar) 875 gpm (3312 L/M) @ 200 psi (13.8 bar) 625 gpm (2365 L/M) @ 250 psi (17.2 bar
The PSD is often driven by this split shaft PTO
PSD 1500 1500 gpm (5678 L/M) @ 150 psi (10.3 bar) 1050 gpm (3974 L/M) @ 200 psi (13.8 bar) 750 gpm (2839 L/M) @ 250 psi (17.2 bar)
50
TRANSMISSION • Recommended Transmission: LDM-XHD-PTO • Gear Ratio: 1.34:1 through 2.67:1 • 300 HP Split Shaft PTO, Torque • Rating Up to 19,260 lb-ft
LDM-XHD-PTO
