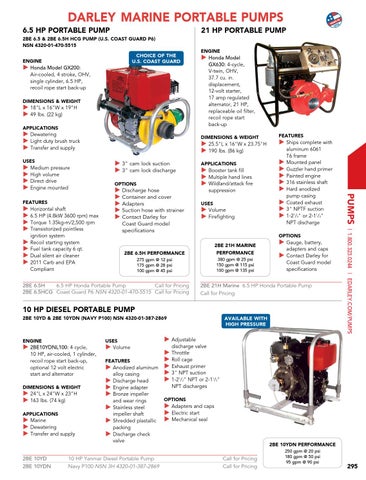

DARLEY MARINE PORTABLE PUMPS 6.5 HP PORTABLE PUMP
21 HP PORTABLE PUMP
2BE 6.5 & 2BE 6.5H HCG PUMP (U.S. COAST GUARD P6) NSN 4320-01-470-5515 CHOICE OF THE U.S. COAST GUARD
ENGINE u Honda Model GX200: Air-cooled, 4 stroke, OHV, single cylinder, 6.5 HP, recoil rope start back-up DIMENSIONS & WEIGHT u 18"L x 16"W x 19"H u 49 lbs. (22 kg) APPLICATIONS u Dewatering u Light duty brush truck u Transfer and supply
ENGINE u Honda Model GX630: 4-cycle, V-twin, OHV, 37.7 cu. in. displacement, 12-volt starter, 17 amp regulated alternator, 21 HP, replaceable oil filter, recoil rope start back-up DIMENSIONS & WEIGHT u 25.5"L x 16"W x 23.75"H u 190 lbs. (86 kg)
USES u Medium pressure u High volume u Direct drive u Engine mounted
u 3" cam lock suction u 3" cam lock discharge OPTIONS
USES u Volume u Firefighting
Coast Guard model specifications
2BE 6.5H PERFORMANCE
2BE 21H MARINE PERFORMANCE
275 gpm @ 12 psi 175 gpm @ 28 psi 100 gpm @ 45 psi
380 gpm @ 25 psi 150 gpm @ 115 psi 100 gpm @ 135 psi
2BE 6.5H 6.5 HP Honda Portable Pump Call for Pricing 2BE 6.5HCG Coast Guard P6 NSN 4320-01-470-5515 Call for Pricing
OPTIONS u Gauge, battery, adapters and caps u Contact Darley for Coast Guard model specifications
2BE 21H Marine 6.5 HP Honda Portable Pump Call for Pricing
10 HP DIESEL PORTABLE PUMP 2BE 10YD & 2BE 10YDN (NAVY P100) NSN 4320-01-387-2869
ENGINE u 2BE10YDNL100: 4 cycle, 10 HP, air-cooled, 1 cylinder, recoil rope start back-up, optional 12 volt electric start and alternator DIMENSIONS & WEIGHT u 24"L x 24"W x 23"H u 163 lbs. (74 kg) APPLICATIONS u Marine u Dewatering u Transfer and supply
2BE 10YD 2BE 10YDN
USES u Volume
AVAILABLE WITH HIGH PRESSURE
| 1.800.323.0244 | EDARLEY.COM/PUMPS
FEATURES u Horizontal shaft u 6.5 HP (4.8kW 3600 rpm) max u Torque 1.35kg-m/2,500 rpm u Transistorized pointless ignition system u Recoil starting system u Fuel tank capacity 6 qt. u Dual silent air cleaner u 2011 Carb and EPA Compliant
PUMPS
u Discharge hose u Container and cover u Adapters u Suction hose with strainer u Contact Darley for
APPLICATIONS u Booster tank fill u Multiple hand lines u Wildland/attack fire suppression
FEATURES u Ships complete with aluminum 6061 T6 frame u Mounted panel u Guzzler hand primer u Painted engine u 316 stainless shaft u Hard anodized pump casing u Coated exhaust u 3" NPTF suction u 1-21/2" or 2-11/2" NPT discharge
u Adjustable
discharge valve
u Throttle u Roll cage FEATURES u Anodized aluminum u Exhaust primer u 3" NPT suction alloy casing u 1-21/2" NPT or 2-11/2" u Discharge head NPT discharges u Engine adapter u Bronze impeller
OPTIONS u Adapters and caps u Electric start impeller shaft u Shredded plastallic u Mechanical seal packing u Discharge check valve
and wear rings
u Stainless steel
10 HP Yanmar Diesel Portable Pump Navy P100 NSN 3H 4320-01-387-2869
2BE 10YDN PERFORMANCE
Call for Pricing Call for Pricing
250 gpm @ 20 psi 180 gpm @ 50 psi 95 gpm @ 90 psi
295
