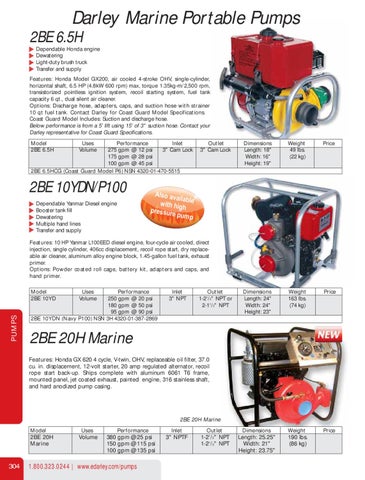

Darley Marine Portable Pumps 2BE 6.5H Dependable Honda engine Dewatering Light-duty brush truck Transfer and supply Features: Honda Model GX200, air cooled 4-stroke OHV, single-cylinder, horizontal shaft, 6.5 HP (4.8kW 600 rpm) max, torque 1.35kg-m/2,500 rpm, transistorized pointless ignition system, recoil starting system, fuel tank capacity 6 qt., dual silent air cleaner. Options: Discharge hose, adapters, caps, and suction hose with strainer 10 qt fuel tank. Contact Darley for Coast Guard Model Specifications. Coast Guard Model Includes: Suction and discharge hose. Below performance is from a 5' lift using 15' of 3" suction hose. Contact your Darley representative for Coast Guard Specifications. Model 2BE 6.5H
Uses Volume
Performance Inlet 275 gpm @ 12 psi 3" Cam Lock 175 gpm @ 28 psi 100 gpm @ 45 psi 2BE 6.5HCG (Coast Guard Model P6) NSN 4320-01-470-5515
2BE 10YDN/P100 Dependable Yanmar Diesel engine Booster tank fill Dewatering Multiple hand lines Transfer and supply
Outlet 3" Cam Lock
Dimensions Length: 18" Width: 16" Height: 19"
Weight 49 lbs. (22 kg)
Price
Dimensions Length: 24" Width: 24" Height: 23"
Weight 163 lbs. (74 kg)
Price
Price
Also av ailab with hig le pressur h e pump
Features: 10 HP Yanmar L100EED diesel engine, four-cycle air cooled, direct injection, single cylinder, 406cc displacement, recoil rope start, dry replaceable air cleaner, aluminum alloy engine block, 1.45-gallon fuel tank, exhaust primer. Options: Powder coated roll cage, battery kit, adapters and caps, and hand primer.
PUMPS
Model 2BE 10YD
Uses Volume
Performance 250 gpm @ 20 psi 180 gpm @ 50 psi 95 gpm @ 90 psi 2BE 10YDN (Navy P100) NSN 3H 4320-01-387-2869
Inlet 3" NPT
Outlet 1-21/2" NPT or 2-11/2" NPT
2BE 20H Marine Features: Honda GX 620 4 cycle, V-twin, OHV, replaceable oil filter, 37.0 cu. in. displacement, 12-volt starter, 20 amp regulated alternator, recoil rope start back-up. Ships complete with aluminum 6061 T6 frame, mounted panel, jet coated exhaust, painted engine, 316 stainless shaft, and hard anodized pump casing.
2BE 20H Marine Model
2BE 20H Marine
304
Uses
Volume
Performance
380 gpm @ 25 psi 150 gpm @ 115 psi 100 gpm @ 135 psi
1.800.323.0244 | www.edarley.com/pumps
Inlet
Outlet
Dimensions
Weight
3" NPTF
1-21/2" NPT 1-21/2" NPT
Length: 25.25" Width: 21" Height: 23.75"
190 lbs. (86 kg)
