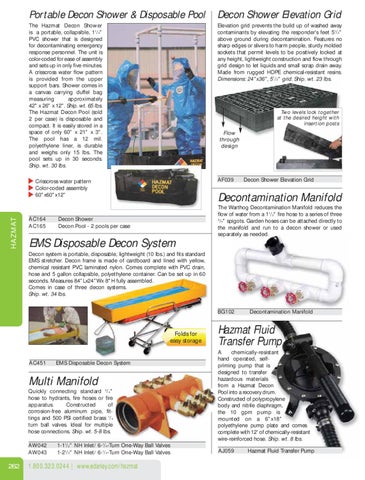

Portable Decon Shower & Disposable Pool
Decon Shower Elevation Grid
The Hazmat Decon Shower is a portable, collapsible, 11/2" PVC shower that is designed for decontaminating emergency response personnel. The unit is color-coded for ease of assembly and sets up in only five minutes. A crisscross water flow pattern is provided from the upper support bars. Shower comes in a canvas carrying duffel bag measuring approximately 42" x 26" x 12". Ship. wt. 65 lbs. The Hazmat Decon Pool (sold 2 per case) is disposable and compact. It is easily stored in a space of only 60" x 21" x 3". The pool has a 12 mil. polyethylene liner, is durable and weighs only 15 lbs. The pool sets up in 30 seconds. Ship. wt. 30 lbs.
Elevation grid prevents the build up of washed away contaminants by elevating the responder's feet 51/2" above ground during decontamination. Features no sharp edges or slivers to harm people, sturdy molded sockets that permit levels to be positively locked at any height, lightweight construction and flow through grid design to let liquids and small scrap drain away. Made from rugged HDPE chemical-resistant resins. Dimensions: 24"x36", 51/2" grid. Ship. wt. 23 lbs.
Two levels lock together at the desired height with insertion posts
Flow through design
AF039
HAZMAT
Crisscross water pattern Color-coded assembly 60"x60"x12"
AC164 AC165
Decon Shower Elevation Grid
Decontamination Manifold The Warthog Decontamination Manifold reduces the flow of water from a 11/2" fire hose to a series of three 3 /4" spigots. Garden hoses can be attached directly to the manifold and run to a decon shower or used separately as needed.
Decon Shower Decon Pool - 2 pools per case
EMS Disposable Decon System Decon system is portable, disposable, lightweight (10 lbs.) and fits standard EMS stretcher. Decon frame is made of cardboard and lined with yellow, chemical resistant PVC laminated nylon. Comes complete with PVC drain, hose and 5 gallon collapsible, polyethylene container. Can be set up in 60 seconds. Measures 84"Lx24"Wx 8"H fully assembled. Comes in case of three decon systems. Ship. wt. 34 lbs. BG102
Folds for easy storage
AC451
EMS Disposable Decon System
Multi Manifold Quickly connecting standard 3/4" hose to hydrants, fire hoses or fire apparatus. Constructed of corrosion-free aluminum pipe, fittings and 500 PSI certified brass 1/4 turn ball valves. Ideal for multiple hose connections. Ship. wt. 5-8 lbs. AW042 AW043
262
1-11/2" NH Inlet/ 6-1/4-Turn One-Way Ball Valves 1-21/2" NH Inlet/ 6-1/4-Turn One-Way Ball Valves
1.800.323.0244 | www.edarley.com/hazmat
Decontamination Manifold
Hazmat Fluid Transfer Pump A chemically-resistant hand operated, selfpriming pump that is designed to transfer hazardous materials from a Hazmat Decon Pool into a recovery drum. Constructed of polypropylene body and nitrile diaphragm, the 10 gpm pump is mounted on a 6"x18" polyethylene pump plate and comes complete with 12' of chemically-resistant wire-reinforced hose. Ship. wt. 8 lbs. AJ059
Hazmat Fluid Transfer Pump
