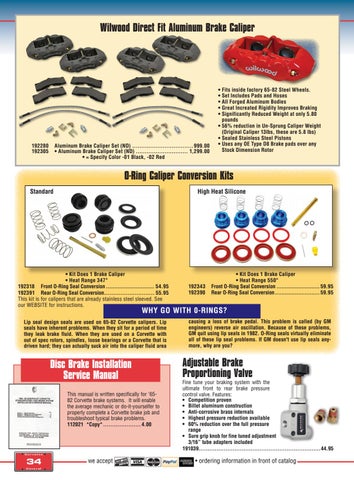

Wilwood Direct Fit Aluminum Brake Caliper
192280 Aluminum Brake Caliper Set (ND)................................... 999.00 192305 • Aluminum Brake Caliper Set (ND).............................. 1,299.00 • = Specify Color -01 Black, -02 Red
• Fits inside factory 65-82 Steel Wheels. • Set Includes Pads and Hoses • All Forged Aluminum Bodies • Great Increated Rigidity Improves Braking • Significantly Reduced Weight at only 5.80 pounds • 56% reduction in Un-Sprung Caliper Weight (Original Caliper 13lbs, these are 5.8 lbs) • Sealed Stainless Steel Pistons • Uses any OE Type D8 Brake pads over any Stock Dimension Rotor
O-Ring Caliper Conversion Kits Standard
High Heat Silicone
• Kit Does 1 Brake Caliper • Heat Range 347° 192318 Front O-Ring Seal Conversion.............................. 54.95 192391 Rear O-Ring Seal Conversion............................. 55.95 This kit is for calipers that are already stainless steel sleeved. See our WEBSITE for instructions.
• Kit Does 1 Brake Caliper • Heat Range 550° 192343 Front O-Ring Seal Conversion........................... 59.95 192390 Rear O-Ring Seal Conversion............................ 59.95
Lip seal design seals are used on 65-82 Corvette calipers. Lip seals have inherent problems. When they sit for a period of time they leak brake fluid. When they are used on a Corvette with out of spec rotors, spindles, loose bearings or a Corvette that is driven hard; they can actually suck air into the caliper fluid area
causing a loss of brake pedal. This problem is called (by GM engineers) reverse air oscillation. Because of these problems, GM quit using lip seals in 1982. O-Ring seals virtually eliminate all of these lip seal problems. If GM doesn't use lip seals anymore, why are you?
WHY GO WITH 0-RINGS?
Disc Brake Installation Service Manual This manual is written specifically for '6582 Corvette brake systems. It will enable the average mechanic or do-it-yourselfer to properly complete a Corvette brake job and troubleshoot typical brake problems. 112021 *Copy*...................... 4.00
34
we accept
Adjustable Brake Proportioning Valve
Fine tune your braking system with the ultimate front to rear brake pressure control valve. Features: • Competition proven • Billet aluminum construction • Anti-corrosive brass internals • Highest pressure reduction available • 60% reduction over the full pressure range • Sure grip knob for fine tuned adjustment 3/16” tube adapters included 191039....................................................................44.95
• ordering information in front of catalog
