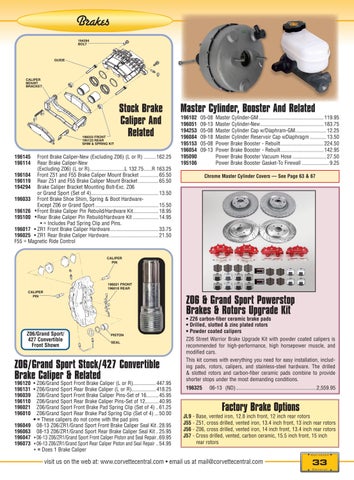

Brakes 194294 BOLT
GUIDE
CALIPER MOUNT BRACKET
196033 FRONT 195123 REAR SHIM & SPRING KIT
Stock Brake Caliper And Related
196145 Front Brake Caliper-New (Excluding Z06) (L or R).......... 162.25 196114 Rear Brake Caliper-New (Excluding Z06) (L or R)..........................L 132.75.......R 163.25 196104 Front Z51 and F55 Brake Caliper Mount Bracket............... 65.50 196119 Rear Z51 and F55 Brake Caliper Mount Bracket................ 65.50 194294 Brake Caliper Bracket Mounting Bolt-Exc. Z06 or Grand Sport (Set of 4)................................................... 13.50 196033 Front Brake Shoe Shim, Spring & Boot Hardware Except Z06 or Grand Sport................................................ 15.50 196126 *Front Brake Caliper Pin Rebuild/Hardware Kit.................... 18.95 195100 *Rear Brake Caliper Pin Rebuild/Hardware Kit.................... 14.95 • = Includes Pad Spring Clip and Pins. 196017 • ZR1 Front Brake Caliper Hardware..................................... 33.75 196025 • ZR1 Rear Brake Caliper Hardware...................................... 21.50 F55 = Magnetic Ride Control
Master Cylinder, Booster And Related 196102 05-08 196051 09-13 194253 05-08 196084 09-18 195153 05-08 196054 09-13 195090 195106
Master Cylinder-GM................................................. 119.95 Master Cylinder-New................................................ 183.75 Master Cylinder Cap w/Diaphram-GM........................ 12.25 Master Cylinder Reservoir Cap wDiaphragm............. 13.50 Power Brake Booster - Rebuilt................................. 224.50 Power Brake Booster - Rebuilt................................. 142.95 Power Brake Booster Vacuum Hose.......................... 27.50 Power Brake Booster Gasket-To Firewall..................... 9.25
Chrome Master Cylinder Covers — See Page 63 & 67
CALIPER PIN
196021 FRONT 196010 REAR
CALIPER PIN
Z06 & Grand Sport Powerstop Brakes & Rotors Upgrade Kit
Z06/Grand Sport/ 427 Convertible Front Shown
PISTON SEAL
Z06/Grand Sport Stock/427 Convertible Brake Caliper & Related 196120 • Z06/Grand Sport Front Brake Caliper (L or R)................. 447.95 196131 • Z06/Grand Sport Rear Brake Caliper (L or R).................. 418.25 196039 Z06/Grand Sport Front Brake Caliper Pins-Set of 16.......... 45.95 196110 Z06/Grand Sport Rear Brake Caliper Pins-Set of 12.......... 40.95 196021 Z06/Grand Sport Front Brake Pad Spring Clip (Set of 4)... 61.25 196010 Z06/Grand Sport Rear Brake Pad Spring Clip (Set of 4).... 50.00 • = These calipers do not come with the pad pins 196049 08-13 Z06/ZR1/Grand Sport Front Brake Caliper Seal Kit.. 28.95 196063 08-13 Z06/ZR1/Grand Sport Rear Brake Caliper Seal Kit... 25.95 196047 * 06-13 Z06/ZR1/Grand Sport Front Caliper Piston and Seal Repair...69.95 196073 * 06-13 Z06/ZR1/Grand Sport Rear Caliper Piston and Seal Repair... 54.95 * = Does 1 Brake Caliper
• Z26 carbon-fiber ceramic brake pads • Drilled, slotted & zinc plated rotors • Powder coated calipers Z26 Street Warrior Brake Upgrade Kit with powder coated calipers is recommended for high-performance, high horsepower muscle, and modified cars. This kit comes with everything you need for easy installation, including pads, rotors, calipers, and stainless-steel hardware. The drilled & slotted rotors and carbon-fiber ceramic pads combine to provide shorter stops under the most demanding conditions. 196325
06-13 (ND).............................................................2,559.95
Factory Brake Options
JL9 - Base, vented iron, 12.8 inch front, 12 inch rear rotors J55 - Z51, cross drilled, vented iron, 13.4 inch front, 13 inch rear rotors J56 - Z06, cross drilled, vented iron, 14 inch front, 13.4 inch rear rotors J57 - Cross drilled, vented, carbon ceramic, 15.5 inch front, 15 inch rear rotors
visit us on the web at: www.corvettecentral.com • email us at mail@corvettecentral.com
33
