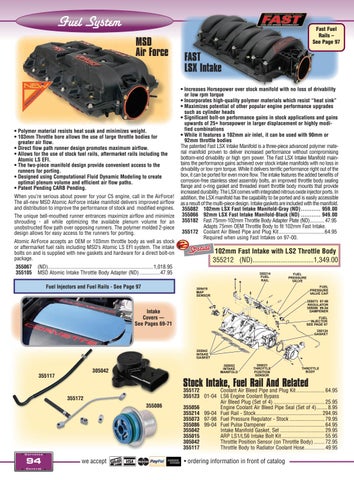

Fuel System MSD Air Force
• Polymer material resists heat soak and minimizes weight. • 103mm Throttle bore allows the use of large throttle bodies for greater air flow. • Direct flow path runner design promotes maximum airflow. • Allows for the use of stock fuel rails, aftermarket rails including the Atomic LS EFI. • The two-piece manifold design provide convenient access to the runners for porting. • Designed using Computational Fluid Dynamic Modeling to create optimal plenum volume and efficient air flow paths. • Patent Pending CARB Pending. When you’re serious about power for your C5 engine, call in the AirForce! The all-new MSD Atomic AirForce intake manifold delivers improved airflow and distribution to improve the performance of stock and modified engines. The unique bell-mouthed runner entrances maximize airflow and minimize shrouding - all while optimizing the available plenum volume for an unobstructed flow path over opposing runners. The polymer molded 2-piece design allows for easy access to the runners for porting. Atomic AirForce accepts an OEM or 103mm throttle body as well as stock or aftermarket fuel rails including MSD’s Atomic LS EFI system. The intake bolts on and is supplied with new gaskets and hardware for a direct bolt-on package.
Fast Fuel Rails – See Page 97
FAST LSX Intake • Increases Horsepower over stock manifold with no loss of drivability or low rpm torque • Incorporates high-quality polymer materials which resist “heat sink” • Maximizes potential of other popular engine performance upgrades such as cylinder heads • Significant bolt-on performance gains in stock applications and gains upwards of 25+ horsepower in larger displacement or highly modi- fied combinations • While it features a 102mm air inlet, it can be used with 90mm or 92mm throttle bodies The patented Fast LSX Intake Manifold is a three-piece advanced polymer material manifold proven to deliver increased performance without compromising bottom-end drivability or high rpm power. The Fast LSX Intake Manifold maintains the performance gains achieved over stock intake manifolds with no loss in drivability or low rpm torque. While it delivers terrific performance right out of the box, it can be ported for even more flow. The intake features the added benefits of corrosion-free stainless steel assembly bolts, an improved throttle body sealing flange and o-ring gasket and threaded insert throttle body mounts that provide increased durability. The LSX comes with integrated nitrous oxide injector ports. In addition, the LSX manifold has the capability to be ported and is easily accessible as a result of the multi-piece design. Intake gaskets are included with the manifold. 355082 102mm LSX Fast Intake Manifold-Gray (ND)............ 959.00 355066 92mm LSX Fast Intake Manifold-Black (ND)............ 949.00 355182 Fast 75mm-102mm Throttle Body Adapter Plate (ND)............. 47.95 Adapts 75mm OEM Throttle Body to fit 102mm Fast Intake. 355172 Coolant Air Bleed Pipe and Plug Kit...................................64.95 Required when using Fast Intakes on 97-00.
102mm Fast Intake with LS2 Throttle Body 355212 (ND)...................................1,349.00
355067 (ND)............................................................................... 1,018.95 355105 MSD Atomic Intake Throttle Body Adapter (ND)................ 47.95 Fuel Injectors and Fuel Rails - See Page 97
355214 FUEL RAIL
FUEL PRESSURE VALVE FUEL PRESSURE VALVE CAP
305419 MAP SENSOR
355073 97-98 REGULATOR 355086 99-04 DAMPENER
Intake Covers –– See Pages 69-71
FUEL INJECTOR SEE PAGE 97 355134 GASKET
355042 INTAKE GASKET 355053 INTAKE MANIFOLD
305042
355117
THROTTLE BODY
Stock Intake, Fuel Rail And Related 355172 Coolant Air Bleed Pipe and Plug Kit...................... 64.95
355172 355086
94
355021 THROTTLE POSITION SENSOR
we accept
355123 01-04 355056 355214 99-04 355073 97-98 355086 99-04 355042 355015 305042 355117
LS6 Engine Coolant Bypass Air Bleed Plug (Set of 4)....................................... 25.95 Engine Coolant Air Bleed Pipe Seal (Set of 4)......... 8.95 Fuel Rail - Stock.................................................. 294.95 Fuel Pressure Regulator - Stock........................... 79.95 Fuel Pulse Dampener............................................ 64.95 Intake Manifold Gasket, Set.................................. 29.95 ARP LS1/LS6 Intake Bolt Kit................................. 55.95 Throttle Position Sensor (on Throttle Body)......... 72.95 Throttle Body to Radiator Coolant Hose................ 49.95
• ordering information in front of catalog
