KOMATSU’S INTELLIGENT MACHINE CONTROL PROMOTES PRODUCTIVITY

Page 76 • February 19, 2022 • www.constructionequipmentguide.com • Excavators & Attachments Section • Construction Equipment Guide Komatsu’s Intelligent Machine Control Promotes Productivity for Excavators

Productivity is the key to success on the job site, and the faster a crew can reach maximum productivity, the better.

As part of Komatsu’s suite of Smart Construction products, services and digital solutions, the company’s intelligent Machine Control 2.0 (iMC 2.0) gives contractors the opportunity to take advantage of sophisticated, productivityenhancing automation.

“Aimed to quickly lessen the skill gap between new and experienced operators — and improve the bottom line for contractors — our excavators with iMC 2.0 technology can help contractors transform their construction job sites into highly efficient, highly productive operations,” said Andrew Earing, senior product manager, tracked products, Komatsu.

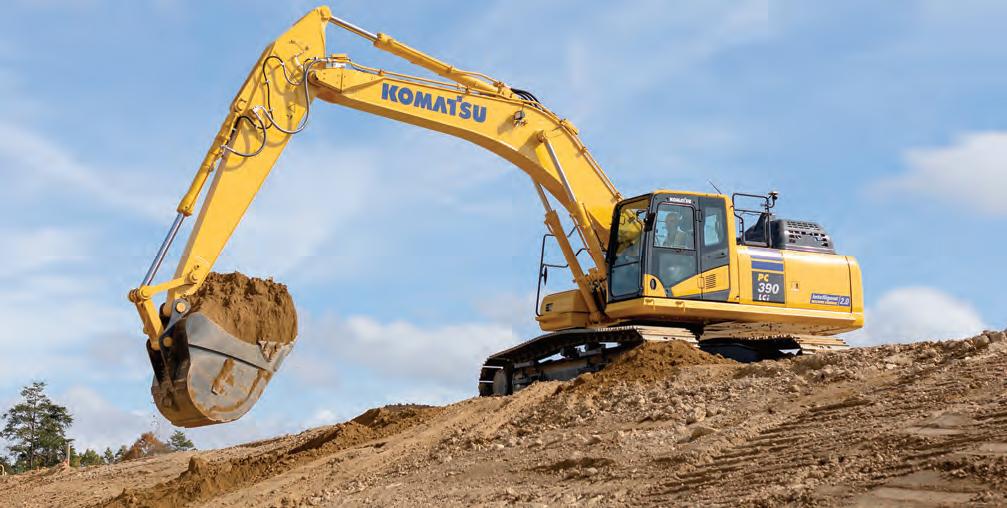

Built on Komatsu’s intelligent machine control platform, and developed with input from leading construction companies, iMC 2.0 offers additional new features on the company’s mid-to large-size construction excavators: the PC290LCi-11, PC360LCi-11 and the PC390LCi-11. An excellent match for footing excavation, trenching and slope work, these excavators with updated, factory-integrated systems, help to minimize over-excavation and empower operators to dig straight to grade quickly and accurately, according to the manufacturer.

Auto Tilt Bucket Control

With integrated machine control, auto tilt bucket control assists operators by aligning the bucket parallel with the slope, so that finish grading can be accomplished without needing to align the machine with the target surface.

Perform Finish Grading Using Only Arm Input

The new bucket angle hold control helps operators reach finish grade quickly and accurately. It automatically holds the bucket angle to the design surface during arm operation, enabling operators to perform finish grading using only arm input.

For more information, visit www.komatsu.com. 

Built on Komatsu’s intelligent machine control platform, and developed with input from leading construction companies, iMC 2.0 offers additional new features on the company’s mid-to large-size construction excavators: the PC290LCi-11, PC360LCi-11 and the PC390LCi-11.

BRANDEIS MACHINERY & SUPPLY COMPANY

www.brandeismachinery.com 1801 Watterson Tr. Louisville, KY 40299 502/491-4000 Evansville, IN 812/425-4491 Corbin, KY 606/528-3700 Lexington, KY 859/259-3456 Stanville, KY 606/478-9201 Paducah, KY 270/444-8390 Indianapolis, IN 317/872-8410 Ft.Wayne, IN 260/489-4551

ROAD BUILDERS MACHINERY & SUPPLY CO., INC.

www.roadbuildersmachinery.com 1001 S. 7th St. Kansas City, KS 66105 913/371-3822 Omaha, NE 402/331-9200 Lincoln, NE 402/325-0447 Grand Island, NE 308/384-2620 Norfolk, NE 402/316-2606

DIESEL MACHINERY, INC.

www.dieselmachinery.com 4301 N. Cliff Avenue Sioux Falls, SD 57104 605/336-0411 800/456-4005 Aberdeen, SD 605/725-4364 888/762-6312 Rapid City, SD 605/348-7438 800/658-3047

CONTINENTAL EQUIPMENT CORP.

www.ceceq.com 3600 N. Grand River Ave. Lansing, MI 48906 517/321-8000

ROAD MACHINERY & SUPPLIES CO.

www.rmsequipment.com 5633 W Hwy 13 Savage MN 55378 952/895-9595 800/888-9515 Duluth, MN 218/727-8611 800/888-9535 Virginia MN 218/741-9011 800/752-4304 Des Moines IA 515/282-0404 800/555-1445 Sioux City IA 712/252-0538 800/633-9104 Cedar Rapids IA 319/363-9655 800/616-6615 East Moline, IL 309-755-7203 800-633-9114

ROLAND MACHINERY CO.

www.rolandmachinery.com 816 N. Dirksen Parkway, Springfield, IL 62702 217/789-7711 Bolingbrook, IL 630/739-7474 Carterville, IL 618/985-3399 East Peoria, IL 309/694-3764 Marengo, IL 815/923-4966 Portage, IN 219/764-8080 Escanaba, MI 906/786-6920 Bridgeton, MO 314/291-1330 Cape Girardeau, MO 573/334-5252 Columbia, MO 573/814-0083 Palmyra, MO 573/769-2056 DePere, WI 920/532-0165 DeForest, WI 608/842-4151 Eau Claire, WI 715/874-5400 Franksville, WI 262/835-2710 Schofield, WI 715/355-9898 Slinger, WI 262/644-7500

CHART from page 74

VOLVO Model

EW60E EWR130E EWR150E EW160E EWR170E EW180E EW220E ECR18E EC20E ECR25D ECR25 Electric EC27D EC35D ECR40D ECR50 ECR58 EC60E ECR88D EC140E ECR145E* EC160E EC200E EC220E ECR235E* EC250E EC250E Hybrid EC300E EC300E Hybrid EC350E ECR355E* EC380E EC480E EC530E EC550E EC750E EC950F EW200E MH EW240E MH

YANMAR Model

SV08-1D (PVR) ViO17-A (PR) ViO25-6A (PR) ViO25-6A (CR) ViO35-6A (PR) ViO35-6A (CRC) VIO35-6A (PRL) ViO35-6A (CRCL) SV40 (PR) SV40 (CRC) SV40 (PRL6) SV40 (CRCL6) ViO50-6A (PR) ViO50-6A (CRC) VIO50-6A (PRL) VIO50-6A (CRCL) ViO55-6A (PR) ViO55-6A (CRC) ViO55-6A (PRL) VIO55-6A (CRCL) ViO80-1A (CRC) ViO80-1A (CC) SV100-2A (CRC) SV100-2A (CC)

Engine hp (kW)

60.6 (45.2) 121 (90) 141 (105) 154 (115) 154 (115) 173 (129) 173 (129) 16.1 (12) 16.1 (12) 20.9 (15.6) 20.1 (15) 20.9 (15.6) 24.8 (18.5) 24.8 (18.5) 42 (31.2) 48 (35.5) 59 (44.3) 58 (43) 121 (90) 121 (90) 148 (110) 154 (115) 173 (129) 173 (129) 225 (168) 225 (168) 253 (189) 253 (189) 307 (229) 241 (180) 307 (229) 380 (283) 456 (340) 456 (340) 526 (392) 603 (450) 169 (126) 173 (129) NOTE: *with dozer blade

Operating Weight lbs. (kg)

12,886 (5,845) 31,747 (14,400) 33,951 (15,400) 35,715 (16,200) 39,570 (17,949) 44,753 (20,300) 48,898 (22,179) 3,748 (1,700) 4,332 (1,965) 5,490 (2,490) 6,019 (2,730) 6,019 (2,730) 7,782 (3,530) 8,554 (3,880) 11,133 (5,050) 12,875 (5,875) 12,740 (5,780) 19,300 (8,810) 31,660 (14,360) 35,280 (16,000) 39,390 (17,870) 49,080 (22,257) 49,490 (22,445) 55,210 (25,040) 60,460 (27,420) 61,340 (27,820) 69,660 (31,590) 70,085 (31,790) 84,390 (38,270) 83,346 (37,805) 88,860 (40,298) 108,890 (49,381) 119,560 (54,220) 124,050 (56,260) 165,150 (74,900) 209,020 (94,810) 50,376 (22,850) 57,320 (26,000)

Digging Depth Digging Reach ft. (m) ft. (m)

11.9 (3.6) 16.8 (5.1) 18.8 (5.8) 18.5 (5.7) 18.8 (5.8) 18.6 (5.7) 21.2 (6.4) 8.0 (2.4) 8.6(2.6) 9.1 (2.8) 9.2 (2.8) 10.2 (3.1) 11.3 (3.4) 11.3 (3.4) 12.4 (3.8) 12.10 (3.9) 13.1 (4.0) 14.10 (4.5) 19.11(6.06) 19.09(6.03) 21.3 (6.47) 22.3 (6.78) 22.1 (6.73) 22.2 (6.76) 23.2 (7.06) 23.2 (7.06) 24.1 (7.34) 24.1 (7.34) 24.8 (7.6) 22.1 (6.96) 24.8 (7.6) 25.6 (7.8) 25.6 (7.8) 25. 3 (7.7) 27.5 (8.4) 29.3 (8.9) N/A N/A

20.1 (6.1) 28.5 (8.7) 28.9 (8.8) 30.2 (9.2) 28.9 (8.8) 31.3 (9.5) 34 (10.4) 13.6 (4.1) 14 (4.3) 15.8 (4.8) 15.5 (4.8) 15.7 (4.7) 17.5 (5.3) 18.8 (5.7) 20.3 (6.1) 20.6 (6.3) 20.6 (6.3) 23.7 (7.2) 29.0 (8.85) 29.0 (8.85) 30.8 (9.35) 32.9 (9.99) 32.7 (9.93) 32.5 (9.89) 33.11 (10.34) 33.11 (10.34) 35.2 (10.71) 35.2 (10.71) 36.8 (11.2) 34.11 (10.64) 36.8 (11.2) 39.8 (12.1) 40 (12.1) 40 (12.1) 43.1 (13.1) 46 (14) 33 (10) 36.1 (11)

Engine hp (kW)

10.3 (7.7) 14.5 (10.8) 20.4 (15.2) 20.4 (15.2) 24.4 (18.2) 24.4 (18.2) 24.4 (18.2) 24.4 (18.2) 39.0 (29.1) 39.0 (29.1) 39.0 (29.1) 39.0 (29.1) 39.0 (29.1) 39.0 (29.1) 39.0 (29.1) 39.0 (29.1) 47.6 (35.5) 47.6 (35.5) 47.6 (35.5) 47.6 (35.5) 56.9 (42.4) 56.9 (42.4) 72.0 (53.7) 72.0 (53.7)

Operating Weight lbs. (kg)

2,348 (1,065) 3,836 (1,740) 5,919 (2,685) 6,206 (2,815) 7,905 (3,585) 8,214 (3,725) 8,223 (3730) 8,532 (3870) 9,206 (4,175) 9,515 (4,315) 9,713 (4,405) 10,066 (4,565) 10,417 (4,725) 10792 (4,895) 10,770 (4,885) 11,144 (5,055) 11,850 (5,375) 12,247 (5,555) 12,203 (5,535) 12,599 (5,715) 18,136 (8,225) 18,268 (8,285) 21,550 (9,775) 21,660 (9,825)

Digging Depth Digging Reach ft. (m) ft. (m)

5.3 (1.62) 7.6 (2.31) 10.3 (3.15) 10.3 (3.15) 11.3 (3.44) 11.3 (3.44) 11'3" (3.42) 11'3" (3.42) 11.8 (3.62) 11.8 (3.62) 11.8 (3.62) 11.8 (3.62) 12.3 (3.74) 12.3 (3.74) 12.3 (3.74) 12.3 (3.74) 13.5 (4.12) 13.5 (4.12) 13.5 (4.12) 13.5 (4.12) 15.3 (4.68) 15.3 (4.68) 15.7 (4.81) 15.7 (4.81) 8.9 (2.73) 12.2 (3.71) 15.8 (4.80) 15.8 (4.80) 17.3 (5.27) 17.3 (5.27) 17.3 (5.27) 17.3 (5.27) 18 (5.50) 18 (5.50) 18 (5.50) 18 (5.50) 18.8 (5.74) 18.8 (5.74) 18.8 (5.74) 18.8 (5.74) 20.2 (6.14) 20.2 (6.14) 20.2 (6.14) 20.2 (6.14) 23.4 (7.14) 23.4 (7.14) 24.3 (7.40) 24.3 (7.40)
