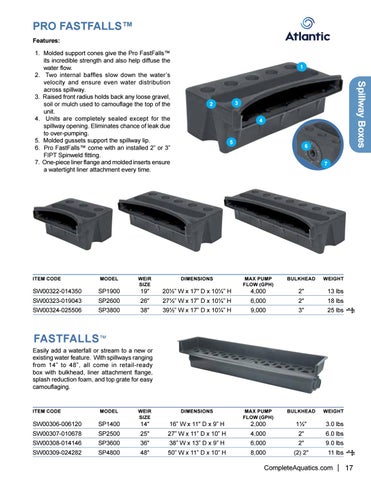

PRO FASTFALLS™ Features:
1
Spillway Boxes
1. Molded support cones give the Pro FastFalls™ its incredible strength and also help diffuse the water flow. 2. Two internal baffles slow down the water’s velocity and ensure even water distribution across spillway. 3. Raised front radius holds back any loose gravel, soil or mulch used to camouflage the top of the unit. 4. Units are completely sealed except for the spillway opening. Eliminates chance of leak due to over-pumping. 5. Molded gussets support the spillway lip. 6. Pro FastFalls™ come with an installed 2” or 3” FIPT Spinweld fitting. 7. One-piece liner flange and molded inserts ensure a watertight liner attachment every time.
3
2
4
5
6 7
item Code Model Weir Dimensions Max Pump Bulkhead Size flow (gph)
Weight
SW00322-014350 SP1900
19"
20½” W x 17" D x 10¼” H
4,000
2"
13 lbs
SW00323-019043 SP2600
26"
27½” W x 17” D x 10¼” H
6,000
2"
18 lbs
SW00324-025506 SP3800
38"
39½” W x 17” D x 10¼” H
9,000
3"
25 lbs
FASTFALLS™
Easily add a waterfall or stream to a new or existing water feature. With spillways ranging from 14” to 48”, all come in retail-ready box with bulkhead, liner attachment flange, splash reduction foam, and top grate for easy camouflaging.
item Code Model Weir Dimensions Max Pump Bulkhead Size flow (gph)
Weight
SW00306-006120 SP1400
14"
16” W x 11" D x 9” H
2,000
1½"
3.0 lbs
SW00307-010678 SP2500
25"
27” W x 11” D x 10” H
4,000
2"
6.0 lbs
SW00308-014146 SP3600
36"
38” W x 13” D x 9” H
6,000
2"
9.0 lbs
SW00309-024282 SP4800
48"
50” W x 11” D x 10” H
8,000
(2) 2"
11 lbs
