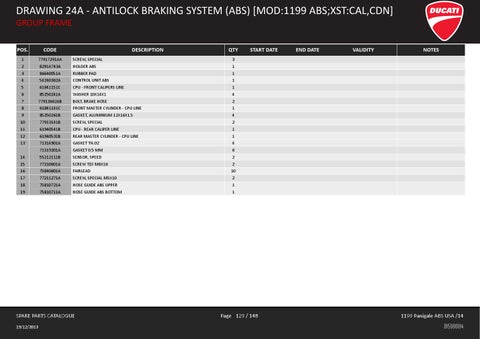

DRAWING 24A - ANTILOCK BRAKING SYSTEM (ABS) [MOD:1199 ABS;XST:CAL,CDN] GROUP FRAME POS.
CODE
DESCRIPTION
1
77917291AA
SCREW, SPECIAL
3
2
8291A743A
HOLDER ABS
1
3
86640051A
RUBBER PAD
1
4
54240362A
CONTROL UNIT ABS
1
5
61841151C
CPU - FRONT CALIPERS LINE
1
6
85250241A
WASHER 10X14X1
4
7
77913662AB
BOLT, BRAKE HOSE
2
8
61841141C
FRONT MASTER CYLINDER - CPU LINE
1
9
85250261B
GASKET, ALUMINIUM 12X16X1.5
4
10
77913141B
SCREW, SPECIAL
2
11
61940541B
CPU - REAR CALIPER LINE
1
12
61940531B
REAR MASTER CYLINDER - CPU LINE
1
13
71314901A
GASKET TH.02
4
71319201A
GASKET 0.5 MM
6
14
55212111B
SENSOR, SPEED
2
15
77210601A
SCREW TEF M6X16
2
16
75840601A
FAIRLEAD
10
17
77211271A
SCREW, SPECIAL M5X10
2
18
75810721A
HOSE GUIDE ABS UPPER
1
19
75810711A
HOSE GUIDE ABS BOTTOM
1
SPARE PARTS CATALOGUE 19/12/2013
QTY
START DATE
Page 129 / 148
END DATE
VALIDITY
NOTES
1199 Panigale ABS USA /14 D15000014
