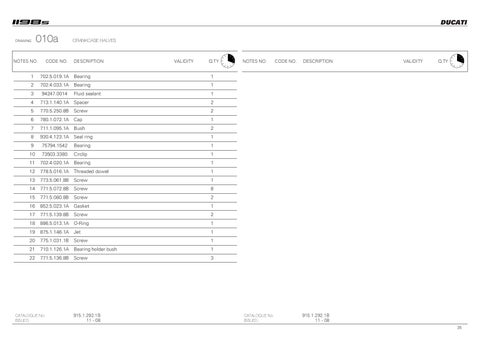

2009 Ducati Superbike 1198 S

Page 37

DUCATI DRAWING

010a

NOTES NO.

CODE NO.

CRANKCASE HALVES

DESCRIPTION

VALIDITY

Q.TY

1

702.5.019.1A

Bearing

2

702.4.033.1A

Bearing

1

3

94247.0014

Fluid sealant

1

4

713.1.140.1A

Spacer

2

5

770.5.250.8B

Screw

2

6

780.1.072.1A

Cap

1

7

711.1.095.1A

Bush

2

8

930.4.123.1A

Seal ring

1

9

75794.1542

Bearing

1

10

73503.3380

Circlip

1

11

702.4.020.1A

Bearing

1

12

778.5.016.1A

Threaded dowel

1

13

773.5.061.8B

Screw

1

14

771.5.072.8B

Screw

8

15

771.5.080.8B

Screw

2

16

852.5.023.1A

Gasket

1

17

771.5.139.8B

Screw

2

18

886.5.013.1A

O-Ring

1

19

875.1.146.1A

Jet

1

20

775.1.031.1B

Screw

1

21

710.1.126.1A

Bearing holder bush

1

22

771.5.136.8B

Screw

3

CATALOGUE No: ISSUED:

915.1.292.1B 11 - 08

NOTES NO.

CODE NO.

DESCRIPTION

VALIDITY

Q.TY

1

CATALOGUE No: ISSUED:

915.1.292.1B 11 - 08 35
