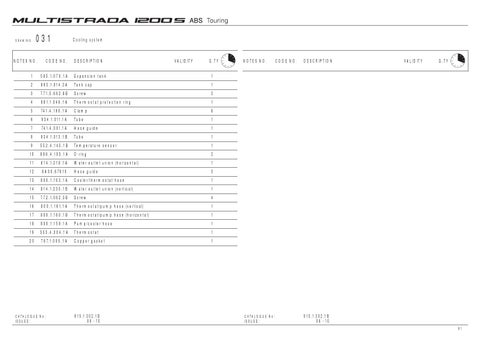

DRAWING
031
NOTES NO.
CODE NO.
Cooling system
DESCRIPTION
VALIDITY
Q.TY
1
585.1.070.1A
Expansion tank
1
2
893.1.014.3A
Tank cap
1
3
771.5.662.8B
Screw
3
4
881.1.046.1A
Thermostat protection ring
1
5
741.4.190.1A
Clamp
8
6
934.1.011.1A
Tube
1
7
741.4.001.1A
Hose guide
1
8
934.1.013.1B
Tube
1
9
552.4.145.1B
Temperature sensor
1
10
886.4.103.1A
O-ring
2
11
814.1.318.1A
Water outlet union (horizontal)
1
12
8A00.67610
Hose guide
3
13
800.1.163.1A
Cooler/thermostat hose
1
14
814.1.235.1B
Water outlet union (vertical)
1
15
772.1.062.3B
Screw
4
16
800.1.161.1A
Thermostat/pump hose (vertical)
1
17
800.1.160.1B
Thermostat/pump hose (horizontal)
1
18
800.1.159.1A
Pump/cooler hose
1
19
553.4.004.1A
Thermostat
1
20
787.1.005.1A
Copper gasket
1
CATALOGUE No: ISSUED:
915.1.302.1B 06 - 10
NOTES NO.
CATALOGUE No: ISSUED:
CODE NO.
DESCRIPTION
VALIDITY
Q.TY
915.1.302.1B 06 - 10 91
