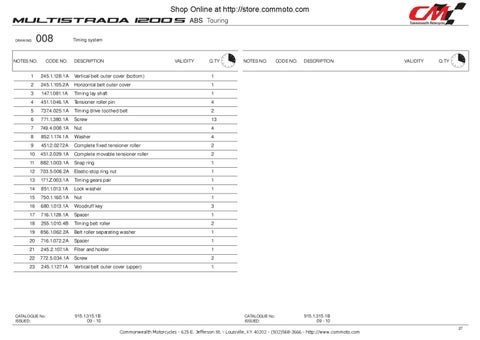

DRAWING
008
NOTES NO.
CODE NO.
Timing system
DESCRIPTION
VALIDITY
Q.TY
1
245.1.128.1A
Vertical belt outer cover (bottom)
1
2
245.1.105.2A
Horizontal belt outer cover
1
3
147.1.081.1A
Timing lay shaft
1
4
451.1.046.1A
Tensioner roller pin
4
5
737.4.025.1A
Timing drive toothed belt
2
6
771.1.380.1A
Screw
13
7
749.4.008.1A
Nut
4
8
852.1.174.1A
Washer
4
9
451.2.027.2A
Complete fixed tensioner roller
2
10
451.2.029.1A
Complete movable tensioner roller
2
11
882.1.003.1A
Snap ring
1
12
703.5.006.2A
Elastic-stop ring nut
1
13
171.Z.003.1A
Timing gears pair
1
14
851.1.013.1A
Lock washer
1
15
750.1.160.1A
Nut
1
16
680.1.013.1A
Woodruff key
3
17
716.1.128.1A
Spacer
1
18
255.1.010.4B
Timing belt roller
2
19
856.1.062.2A
Belt roller separating washer
1
20
716.1.072.2A
Spacer
1
21
245.2.107.1A
Filter and holder
1
22
772.5.034.1A
Screw
2
23
245.1.127.1A
Vertical belt outer cover (upper)
1
CATALOGUE No: ISSUED:
915.1.315.1B 09 - 10
NOTES NO.
CATALOGUE No: ISSUED:
CODE NO.
DESCRIPTION
VALIDITY
Q.TY
915.1.315.1B 09 - 10
