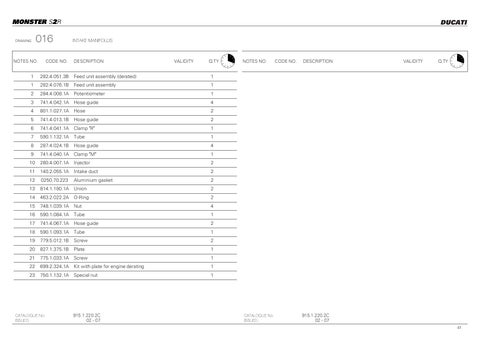

DUCATI DRAWING

016

NOTES NO.

CODE NO.

INTAKE MANIFOLDS

DESCRIPTION

VALIDITY

Q.TY

1

282.4.051.3B

Feed unit assembly (derated)

1

282.4.076.1B

Feed unit assembly

1

2

284.4.008.1A

Potentiometer

1

3

741.4.042.1A

Hose guide

4

4

801.1.027.1A

Hose

2

5

741.4.013.1B

Hose guide

2

6

741.4.041.1A

Clamp "R"

1

7

590.1.132.1A

Tube

1

8

287.4.024.1B

Hose guide

4

9

741.4.040.1A

Clamp "M"

1

10

280.4.007.1A

Injector

2

11

140.2.055.1A

Intake duct

2

12

0250.70.223

Aluminium gasket

2

13

814.1.180.1A

Union

2

14

463.2.022.2A

O-Ring

2

15

748.1.039.1A

Nut

4

16

590.1.084.1A

Tube

1

17

741.4.067.1A

Hose guide

2

18

590.1.093.1A

Tube

1

19

779.5.012.1B

Screw

2

20

827.1.375.1B

Plate

1

21

775.1.033.1A

Screw

1

22

699.2.324.1A

Kit with plate for engine derating

1

23

750.1.132.1A

Special nut

1

CATALOGUE No: ISSUED:

915.1.220.2C 02 - 07

NOTES NO.

CODE NO.

DESCRIPTION

VALIDITY

Q.TY

1
