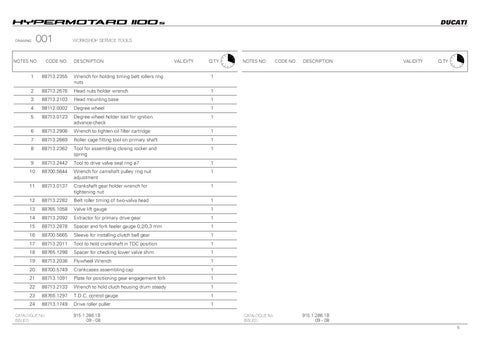

Page 9

DUCATI DRAWING

001

NOTES NO.

CODE NO.

WORKSHOP SERVICE TOOLS

DESCRIPTION

VALIDITY

Q.TY

1

88713.2355

Wrench for holding timing belt rollers ring nuts

1

2

88713.2676

Head nuts holder wrench

1

3

88713.2103

Head mounting base

1

4

98112.0002

Degree wheel

1

5

88713.0123

Degree wheel holder tool for ignition advance check

1

6

88713.2906

Wrench to tighten oil filter cartridge

1

7

88713.2669

Roller cage fitting tool on primary shaft

1

8

88713.2362

Tool for assembling closing rocker and spring

1

9

88713.2442

Tool to drive valve seal ring ø7

1

10

88700.5644

Wrench for camshaft pulley ring nut adjustment

1

11

88713.0137

Crankshaft gear holder wrench for tightening nut

1

12

88713.2282

Belt roller timing of two-valva head

1

13

88765.1058

Valve lift gauge

1

14

88713.2092

Extractor for primary drive gear

1

15

88713.2878

Spacer and fork feeler gauge 0,2/0,3 mm

1

16

88700.5665

Sleeve for installing clutch bell gear

1

17

88713.2011

Tool to hold crankshaft in TDC position

1

18

88765.1298

Spacer for checking lower valve shim

1

19

88713.2036

Flywheel Wrench

1

20

88700.5749

Crankcases assembling cap

1

21

88713.1091

Plate for positioning gear engagement fork

1

22

88713.2133

Wrench to hold cluch housing drum steady

1

23

88765.1297

T.D.C. control gauge

1

24

88713.1749

Drive roller puller

1

CATALOGUE No: ISSUED:

915.1.286.1B 09 - 08

NOTES NO.

CATALOGUE No: ISSUED:

CODE NO.

DESCRIPTION

VALIDITY

Q.TY

915.1.286.1B 09 - 08 5
