525 XC USA 2007

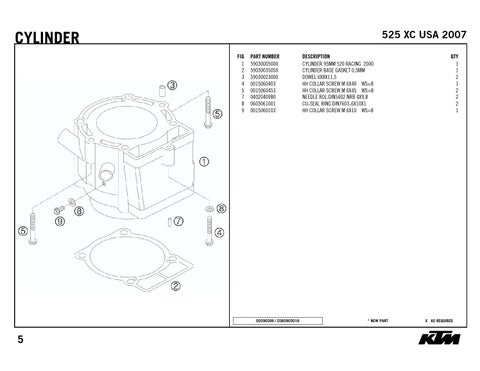

CYLINDER FIG 1 2 3 4 5 7 8 9
PART NUMBER 59030005000 59030035050 59030023000 0015060403 0015060453 0402040980 0603061001 0015060103
05590306 / C065903016
5
DESCRIPTION CYLINDER 95MM 520 RACING 2000 CYLINDER BASE GASKET 0,5MM DOWEL 6X8X11,5 HH COLLAR SCREW M 6X40 WS=8 HH COLLAR SCREW M 6X45 WS=8 NEEDLE ROL.DIN5402 NRB 4X9,8 CU-SEAL RING DIN7603-6X10X1 HH COLLAR SCREW M 6X10 WS=8
* NEW PART
QTY 1 1 2 1 2 2 2 1
X AS REQUIRED
