3. Affected Trees and Vegetation

A Tree Assessment 1 was prepared in August 2012 and formed part of the original Notice of

Requirement (NoR) for establishing the CRL designations.

3.1 Fenton Street Utility Diversions

In total, seven native trees will be impacted by the need to divert the Huia 2 watermain and other utilities within the Fenton Street road reserve. These trees were planted circa 2015, after the Tree Assessment prepared for the original CRL Notice of Requirement was undertaken, and as such were not identified as part of that assessment.

The trees identified for removal are shown in Figure 3-1 and described in Table 3-1.

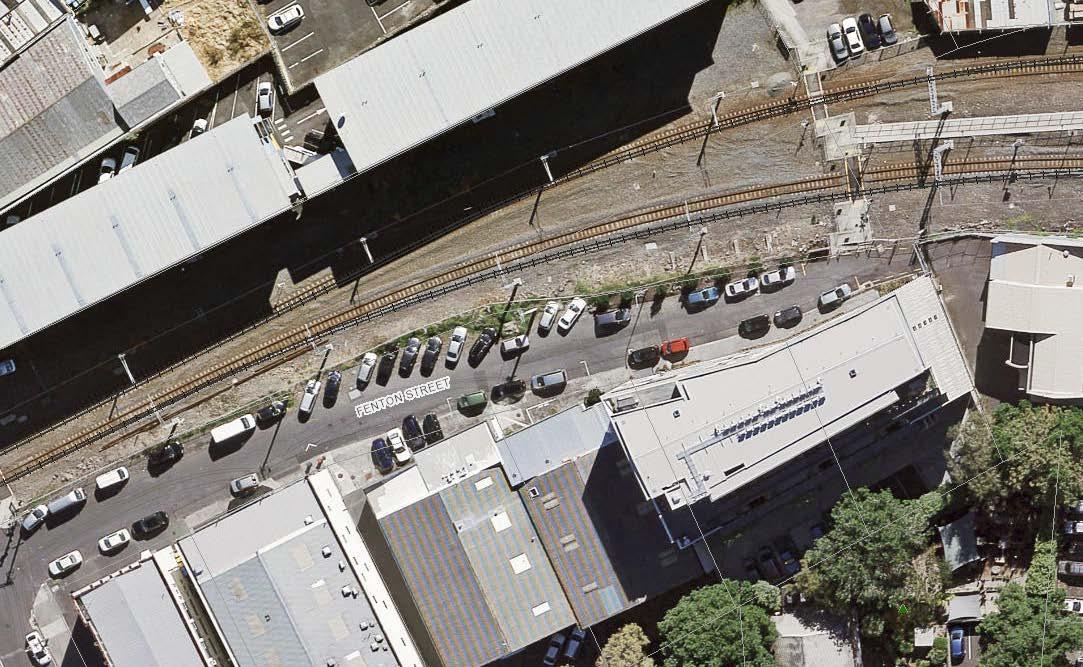

Figure 3-1 Location of the trees identified for removal on Fenton Street

Table 3-1 Trees impacted by the Project

Tree(s) ID

N/A Common Tree Name

Pohutukawa x7 Botanical Name Metrosideros excelsa Scheduled Tree Condition Estimated height (m) Project Effect Mitigation Measures No Good 5 Remove Transplant

None of the trees within the Mt Eden Enabling Works area are scheduled under the Auckland Unitary Plan (Operative in part). Despite this, consideration has been given to transplanting all trees planned for removal (discussed in Section 4 below).

Page 9 | Mt Eden Enabling Works 1 Boffa Miskell (2012) City Rail Link Tree Assessment. Report prepared for Auckland Transport, dated August 2012.
