YardMachine700SeriesRidersRepairManual

Engine Related Parts

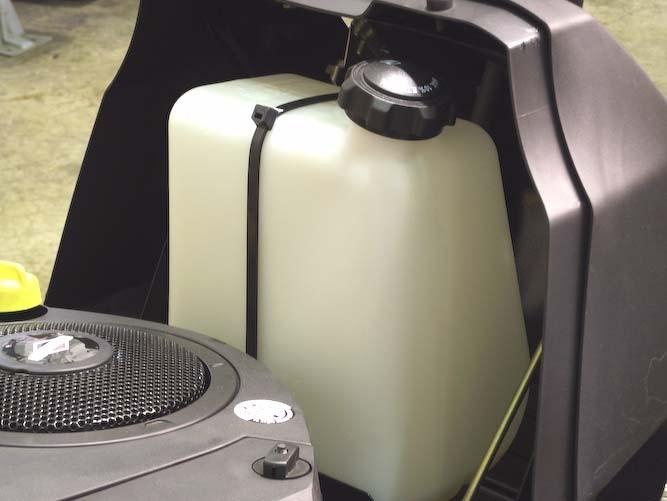

3. Cut the plastic tie that secures the fuel tank to the gas tank support bracket. See Figure 2.4.

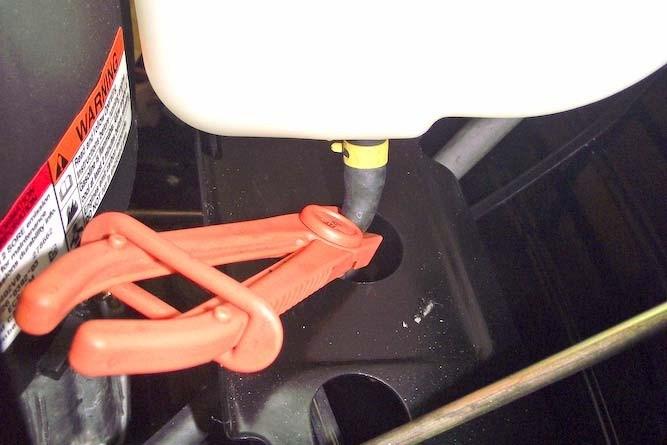

4. If you did not drain the fuel, raise the fuel tank up off the support bracket high enough to allow you to clamp the fuel line above the support bracket. See Figure 2.5.

NOTE: This will allow you to remove the tank and fuel line up and out of the support bracket.

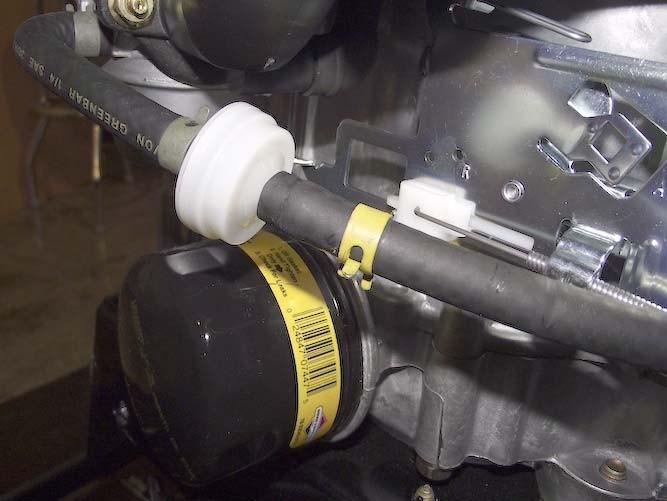

5. Using pliers slide the fuel line clamp away from the fuel filter. See Figure 2.6.

6. Remove the fuel line from the fuel filter nipple.

7. Remove the fuel tank and line from the support bracket.

8. Install the fuel tank by following the above steps in reverse order.

9. Test run the tractor and check for leaks before returning to service.
