PROTECTING THE ELECTRONIC / ELECTRICAL SYSTEMS DURING CHARGING WELDING

W Arning

Battery acid causes Batteries contain sulfuric

A void contact with skin, eyes clothing. Antidote (external): Flush with water . Antidote (eyes): flush with water for minutes and seek medical attention immediately . Antidote (internal): Drink large quantities water milk. not induce vomiting. Seek medical attention immediately . Failure comply could result death serious injury .

T o avoid damage the electronic / electrical always observe the following:

Never make break any the charging circuit including the battery when the engine

Never short any the charging components ground.

Always disconnect the ground cable from the battery before arc welding the

• Position the welder ground clamp close the welding area possible.

• welding close proximity a computer then the module should removed from the

• Never allow welding cables lay near across any electrical wiring electronic component while welding

Always disconnect the negative cable from the battery when charging the battery the unit with a battery charger

NOTICE: welding must performed the the battery ground cable must disconnected from the battery The electronic monitoring system and charging system will damaged this not

Are P Arts

Only use "CNH Original " CASE Parts".

Only genuine spare parts guarantee the same quality , duration and safety original they are the same parts that are assembled during standard Only "CNH Original " CASE can fer this When ordering spare always provide the following information:

• Machine model (commercial name) and serial number

• part number the ordered which can found the Parts Catalogue", used for order processing

T Ools

The tools that CASE suggests and illustrate this manual have been:

• specifically researched and designed for use with CASE machines

• essential for reliable repair operations

• accurately built and rigorously tested fer ficient and long - lasting operation using these Repair Personnel will benefit from:

• operating optimal technical conditions

• obtaining the best results

• saving time and fort

• working safe conditions

NOTE: W ear limit values indicated for certain parts should considered but not The terms "front", "rear", - and - (when referred different parts) are determined from the rear , facing the direction travel the machine during

Consumables Lubrications and Coolants

Lubrications

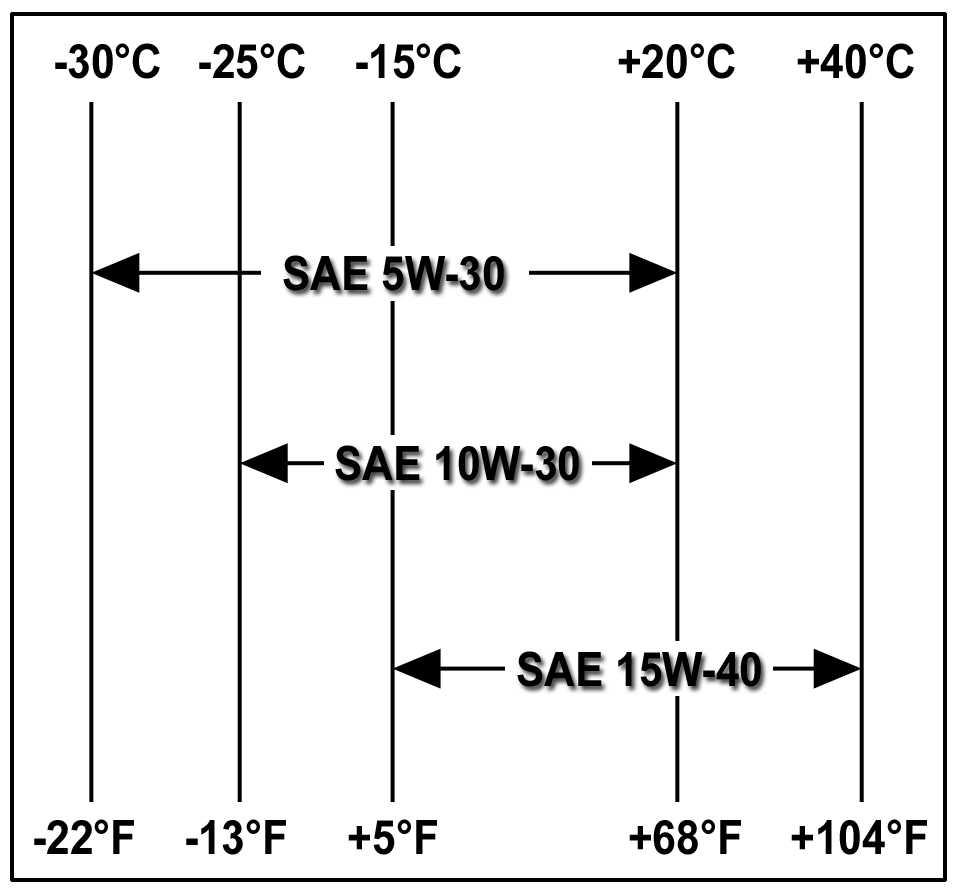

The correct engine oil viscosity grade dependent upon ambient Refer the chart when selecting oil for your tractor

SS09J076 1

NOTE: areas where prolonged periods extreme temperatures are local lubricant practices are acceptable; such the use SAE 5W30 extreme low temperatures SAE extreme high

Biodegradable transmission and hydraulic oil

W Arning

Burn hazard!

very careful avoid contact with hot fluid extremely allow cool a moderately warm temperature before proceeding. Failure comply could result death serious injury .

W0362A

A biodegradable oil has been approved for use the 4WD front axle and and the hydraulic system your tractor . Although the oil % biodegradable, important follow safe handling and disposal practices.

The CASE AKCELA TSM BIO oil available from your authorized dealer

Biodegradable oil should not used conjunction with other Use the following procedure replace standard oil with biodegradable

Operate the tractor until the oil that being changed reaches a temperature greater than ( 140 ) . Stop the engine and immediately drain the Replace all transmission and hydraulic filters.

Add the biodegradable oil the correct level and run the tractor circulate the Check for oil leaks and recheck the oil level.
