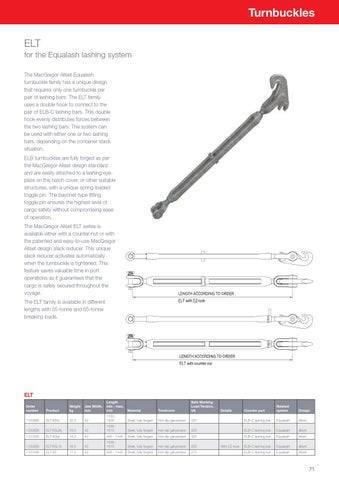

Turnbuckles ELT for the Equalash lashing system The MacGregor Allset Equalash turnbuckle family has a unique design that requires only one turnbuckle per pair of lashing bars. The ELT family uses a double hook to connect to the pair of ELB-C lashing bars. This double hook evenly distributes forces between the two lashing bars. The system can be used with either one or two lashing bars, depending on the container stack situation. ELB turnbuckles are fully forged as per the MacGregor Allset design standard and are easily attached to a lashing eyeplate on the hatch cover, or other suitable structures, with a unique spring-loaded toggle pin. The bayonet-type fitting toggle pin ensures the highest level of cargo safety without compromising ease of operation. The MacGregor Allset ELT series is available either with a counter-nut or with the patented and easy-to-use MacGregor Allset design slack reducer. This unique slack reducer activates automatically when the turnbuckle is tightened. This feature saves valuable time in port operations as it guarantees that the cargo is safely secured throughout the voyage. The ELT family is available in different lengths with 55-tonne and 65-tonne breaking loads.
ELT Order number 1120860
Product ELT-65XL
Weight kg 22.0
Jaw Width, mm
Length min - max, mm
Material
Treatment
Safe Working Load Tension, kN
42
1160 1930
Steel, fully forged
Hot-dip galvanised
Counter part
Related system
Design
325
ELB-C lashing bar
Equalash
Allset
Details
1120858
ELT-65L(A)
19.0
42
1030 1670
Steel, fully forged
Hot-dip galvanised
325
ELB-C lashing bar
Equalash
Allset
1131050
ELT-60(a)
18.0
42
945 - 1445
Steel, fully forged
Hot-dip galvanised
325
ELB-C lashing bar
Equalash
Allset
Steel, fully forged
Hot-dip galvanised
325
ELB-C lashing bar
Equalash
Allset
Steel, fully forged
Hot-dip galvanised
275
ELB-C lashing bar
Equalash
Allset
1120859
ELT-65L-S
18.5
42
1030 1670
1131048
ELT-55
17.0
42
945 - 1445
With EZ-lock
71
