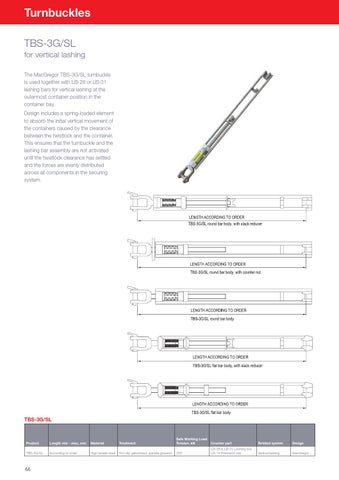

Turnbuckles TBS-3G/SL for vertical lashing The MacGregor TBS-3G/SL turnbuckle is used together with LB-28 or LB-31 lashing bars for vertical lashing at the outermost container position in the container bay. Design includes a spring-loaded element to absorb the initial vertical movement of the containers caused by the clearance between the twistlock and the container. This ensures that the turnbuckle and the lashing bar assembly are not activated until the twistlock clearance has settled and the forces are evenly distributed across all components in the securing system.
TBS-3G/SL
Product TBS-3G/SL
66
Length min - max, mm According to order
Material High tensile steel
Treatment Hot-dip galvanised, spindle greased
Safe Working Load Tension, kN
Counter part
Related system
Design
250
LB-28 & LB-31 Lashing bar, LB-14 Extension bar
Vertical lashing
MacGregor
