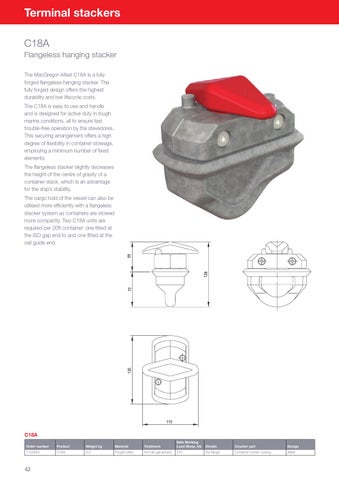

Terminal stackers C18A Flangeless hanging stacker The MacGregor Allset C18A is a fully forged flangeless hanging stacker. The fully forged design offers the highest durability and low lifecycle costs. The C18A is easy to use and handle and is designed for active duty in tough marine conditions, all to ensure fast trouble-free operation by the stevedores. This securing arrangement offers a high degree of flexibility in container stowage, employing a minimum number of fixed elements. The flangeless stacker slightly decreases the height of the centre of gravity of a container stack, which is an advantage for the ship’s stability. The cargo hold of the vessel can also be utilised more efficiently with a flangeless stacker system as containers are stowed more compactly. Two C18A units are required per 20ft container: one fitted at the ISO gap end to and one fitted at the cell guide end.
C18A Order number
Product
Weight kg
Material
Treatment
Safe Working Load Shear, kN
Details
Counter part
Design
1120854
C18A
3.5
Forged steel
Hot-dip galvanised
210
No flange
Container corner casting
Allset
62
