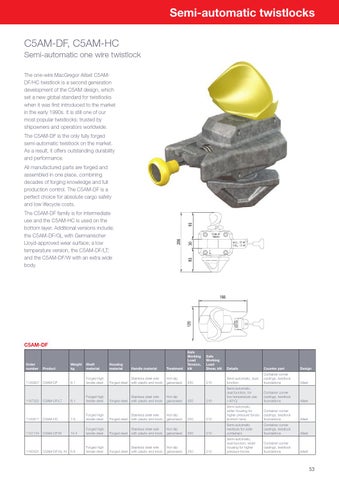

Semi-automatic twistlocks C5AM-DF, C5AM-HC Semi-automatic one wire twistlock The one-wire MacGregor Allset C5AMDF/HC twistlock is a second generation development of the C5AM design, which set a new global standard for twistlocks when it was first introduced to the market in the early 1990s. It is still one of our most popular twistlocks; trusted by shipowners and operators worldwide. The C5AM-DF is the only fully forged semi-automatic twistlock on the market. As a result, it offers outstanding durability and performance. All manufactured parts are forged and assembled in one place, combining decades of forging knowledge and full production control. The C5AM-DF is a perfect choice for absolute cargo safety and low lifecycle costs. The C5AM-DF family is for intermediate use and the C5AM-HC is used on the bottom layer. Additional versions include: the C5AM-DF/GL with Germanischer Lloyd-approved wear surface; a low temperature version, the C5AM-DF/LT; and the C5AM-DF/W with an extra wide body.
C5AM-DF
Order number
1120907
1187322
1120911
1131134
1193431
Product
C5AM-DF
C5AM-DF/LT
C5AM-HC
C5AM-DF/W
C5AM-DF/GL-N
Weight kg
6.1
6.1
7.9
10.4
6.8
Shaft material Forged high tensile steel
Forged high tensile steel
Forged high tensile steel Forged high tensile steel
Forged high tensile steel
Housing material
Forged steel
Forged steel
Forged steel
Forged steel
Forged steel
Handle material Stainless steel wire with plastic end knob
Stainless steel wire with plastic end knob
Stainless steel wire with plastic end knob Stainless steel wire with plastic end knob
Stainless steel wire with plastic end knob
Treatment Hot-dip galvanised
Hot-dip galvanised
Hot-dip galvanised Hot-dip galvanised
Hot-dip galvanised
Safe Working Load Tension, kN
250
250
250
250
250
Safe Working Load Shear, kN
Details
Counter part
Design
210
Semi-automatic, dual function
Container corner castings, twistlock foundations
Allset
210
Semi-automatic, dual function, for low temperature use (-40째C)
Container corner castings, twistlock foundations
Allset
210
Semi-automatic, wider housing for higher pressure forces (bottom tiers)
Container corner castings, twistlock foundations
Allset
210
Semi-automatic twistlock for wide containers
Container corner castings, twistlock foundations
Allset
210
Semi-automatic, dual function, wider housing for higher pressure forces
Container corner castings, twistlock foundations
Allset
53
