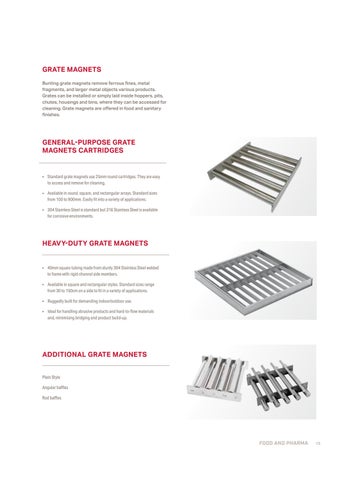

GRATE MAGNETS Bunting grate magnets remove ferrous fines, metal fragments, and larger metal objects various products. Grates can be installed or simply laid inside hoppers, pits, chutes, housings and bins, where they can be accessed for cleaning. Grate magnets are offered in food and sanitary finishes.
GENERAL-PURPOSE GRATE MAGNETS CARTRIDGES • Standard grate magnets use 25mm round cartridges. They are easy to access and remove for cleaning. • Available in round, square, and rectangular arrays. Standard sizes from 100 to 900mm. Easily fit into a variety of applications. • 304 Stainless Steel is standard but 316 Stainless Steel is available for corrosive environments.
HEAVY-DUTY GRATE MAGNETS • 40mm square tubing made from sturdy 304 Stainless Steel welded to frame with rigid channel side members. • Available in square and rectangular styles. Standard sizes range from 30 to 150cm on a side to fit in a variety of applications. • Ruggedly built for demanding indoor/outdoor use. • Ideal for handling abrasive products and hard-to-flow materials and, minimising bridging and product build-up.
ADDITIONAL GRATE MAGNETS Plain Style Angular baffles Rod baffles
