PRODUCT DATA SHEETS
Alloy Chain Slings & Fittings
Keeping safe is a continuous challenge and one we believe is worth taking on. We believe in ZERO HARM.
Copyright© 2024 Bullivants Pty. Ltd. All Rights Reserved
Contents
ALLOY CHAIN SLINGS & FITTINGS
Grade 100 Chain Sling Assemblies
Single Leg
Two Leg
Four Leg
RUD – ICE 120
G100 Connecting Links
G100 Eye Type Bearing Swivel Self Locking Hook
G100 Clevis Self Locking Hook
G100 Eye Type Self Locking Hook
G100 Eye Type Sling Hook
G100 Clevis Grab Hook
G100 Masterlink MF
G100 Clevis Sling Hook
Gunnebo - Grade 100 Chain Fittings
Grade 100 Chain Sling Assemblies
Bullivants Chain Slings provide various use for industrial and construction applications. These are temperature resistant, and strong enough to handle a wide array of loading conditions.
Features & Benefits:
• Shortening Hooks are supplied with the chain sling allowing versatility in the length required for the lifting application
• Supplied with 100% rated, Grade 100, grab hooks, self-locking hooks and Gunnebo chain
• 25% stronger than Grade 80 allowing the chain size to reduce to lift the same job
• High impact resistance and durability when compared to Grade 80
• High abrasion resistance Alloy Steel suitable for lifting objects with sharp edges which are known to damage other sling types
• Very high chemical resistance for extended product life in harsh environments
• Full working load capacity up to 200°C enables use in hot work environments (200-300ºC at 10% reduction in WLL & 300-400ºC at 25% reduction in WLL)
• Reeved slings and basket slings in a two leg configuration have a maximum angle of 60°
• Determination of the angle of the multi leg sling is the largest included angle at the apex of the configuration
• Complies with AS 3775.2:2014
• Assembled in Australia
ZERO HARM Product Features:
• Grade 100 makes the process lighter and reduces the risk of potential manual handling injuries
• Self-Locking Hook to prevent accidental load release
• Hi Visibility Colour contrast connecting points
• Each chain sling is supplied with safe use instructions
• Each and every chain sling is load tested in accordance with Australian Standards and supplied with a NATA certificate
Grade 100 Chain Sling Assemblies
Single Leg Chain Slings
1-030-BVE
WSC-16-1-040-BVE 16 4 10.0
Self-Locking Hook
Grade 100 Chain Sling Assemblies
2 Leg Chain Slings
WCS-13-2-040-BVE
WCS-13-2-050-BVE
WCS-13-2-060-BVE
WCS-16-2-050-BVE
WCS-16-2-060-BVE 16 6 17.3
WCS-16-2-080-BVE 16 8 17.3
Grade 100 Chain Sling Assemblies
4 Leg Chain Slings
Effective Length:
All Bullivants slings are measured as ‘effective length’. This measurement is the length of the sling including components measured from the load bearing point. Example: from where the master link attaches to the lifting device to the load bearing point of the hook on the lower end.
Chain Sling Effective Length
Grade 100 Chain Sling Assemblies
Technical:
All multi-leg slings exert a horizontal component of force, which increases as the included angle becomes greater. DO NOT use a sling if the included angle exceeds 120º, as beyond this point the forces in the legs drastically increase, as indicated in the diagram
4mm assembly 1.4t @ 60o

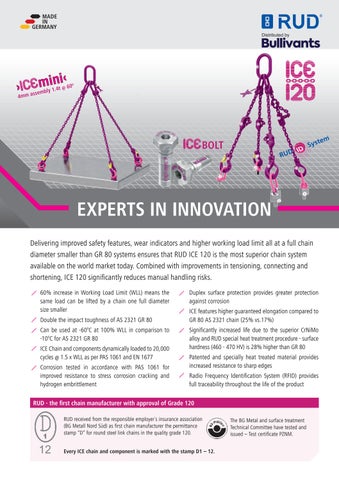

EXPERTS IN INNOVATION
Delivering improved safety features, wear indicators and higher working load limit all at a full chain diameter smaller than GR 80 systems ensures that RUD ICE 120 is the most superior chain system available on the world market today. Combined with improvements in tensioning, connecting and shortening, ICE 120 significantly reduces manual handling risks.
60% increase in Working Load Limit (WLL) means the same load can be lifted by a chain one full diameter size smaller
Double the impact toughness of AS 2321 GR 80
Can be used at -60oC at 100% WLL in comparison to -10oC for AS 2321 GR 80
ICE Chain and components dynamically loaded to 20,000 cycles @ 1.5 x WLL as per PAS 1061 and EN 1677
Corrosion tested in accordance with PAS 1061 for improved resistance to stress corrosion cracking and hydrogen embrittlement
Duplex surface protection provides greater protection against corrosion
ICE features higher guaranteed elongation compared to GR 80 AS 2321 chain (25% vs.17%)
Significantly increased life due to the superior CrNiMo alloy and RUD special heat treatment procedure - surface hardness (460 - 470 HV) is 28% higher than GR 80
Patented and specially heat treated material provides increased resistance to sharp edges
Radio Frequency Identification System (RFID) provides full traceability throughout the life of the product
RUD - the first chain manufacturer with approval of Grade 120
RUD received from the responsible employer´s insurance association (BG Metall Nord Süd) as first chain manufacturer the permittance stamp “D” for round steel link chains in the quality grade 120.
Every ICE chain and component is marked with the stamp D1 – 12.
The BG Metal and surface treatment Technical Committee have tested and issued – Test certificate PZNM.
Patented Heat Indicator
In high temperature environments, the special fluorescent ICE powder coating permanently changes its colour. Above 300°C the colour changes permanently to black and the chain assembly should be taken out of service (see picture right).
For more information on how RUD can help meet your performance demands with the high-strength-lowweight ICE 120 range, please email salessupport@rud.com.au or call 07 3809 1300.
G100 Connecting Links
Main Features:
• For use with Grade 100 chain
• 25% Stronger than Grade 80 equivalent
ZERO HARM Product Features:
• Grade 100 makes the process lighter and reduces the risk of potential manual handling injuries
• Hi Visibility Colour contrast connecting points
• Individually proof load tested to 2 x WLL
• Fatigue tested at 1.5 x WLL for 20,000 cycles
• 100% Magnaflux detection
• All load pins are 100% individually inspected and tested
Specifications:
G100 Eye Type Bearing Swivel
Self Locking Hook
Main Features:
• Ball bearing allows hook to swivel under load
• Latch closes automatically under load
• Swivel allows load to easily rotate
• 100% Proof load tested
• Allows attachment to chain, wire rope, or synthetic slings
ZERO HARM Product Features:
• Grade 100 makes the process lighter and reduces the risk of potential manual handling injuries
• Self-Locking Hook to prevent accidental load release
• Hi Visibility Colour contrast connecting points
G100 Clevis Self Locking Hook
Main Features:
• Clevis pin for direct connection to chain without connecting link
• Low profile trigger to prevent snagging and damage
• 25% Stronger than Grade 80 equivalent
• Individually tested to 2 x WLL
• Complies with AS 3776:2015
ZERO HARM Product Features:
• Grade 100 makes the process lighter and reduces the risk of potential manual handling injuries
• Self-Locking Hook to prevent accidental load release
• Hi Visibility Colour contrast connecting points
Specifications:
G100 Eye Type
Self Locking Hook
Main Features:
• Eye type for use with connecting link
• Low profile trigger to prevent snagging and damage
• 25% Stronger than Grade 80 equivalent
• Individually tested to 2 x WLL
• Complies with AS 3776:2015
ZERO HARM Product Features:
• Grade 100 makes the process lighter and reduces the risk of potential manual handling injuries
• Self-Locking Hook to prevent accidental load release
• Hi Visibility Colour contrast connecting points
G100 Eye Type Sling Hook
Main Features:
• Eye type for use with connecting link
• Fitted with spring loaded latch
• 25% Stronger than Grade 80 equivalent
• Individually tested to 2 x WLL
• Complies with AS 3776:2015
ZERO HARM Product Features:
• Grade 100 makes the process lighter and reduces the risk of potential manual handling injuries
• Hi Visibility Colour contrast connecting points
Specifications:
G100 Clevis Grab Hook
Main Features:
• Clevis pin for direct connection to chain without connecting link
• No reduction in WLL due to supporting lugs
• 25% Stronger than Grade 80 equivalent
• Individually tested to 2 x WLL
• Complies with AS 3776:2015
ZERO HARM Product Features:
• Grade 100 makes the process lighter and reduces the risk of potential manual handling injuries
• Hi Visibility Colour contrast connecting points
G100 Clevis Sling Hook
Main Features:
• Clevis pin for direct connection to chain without connecting link
• Fitted with spring loaded latch
• 25% Stronger than Grade 80 equivalent
• Individually tested to 2 x WLL
• Surface finish: White powder coated
• Complies with AS 3776
ZERO HARM Product Features:
• Grade 100 makes the process lighter and reduces the risk of potential manual handling injuries
• High visibility colour contrast connecting points
Gunnebo Grade 100 Chain Fittings
Grade 100 Master Links – M/MF
Main Features:
• Designed for wire rope or chain sling assemblies
• Load ratings quoted, in some cases exceed the WLL on chain slings
• When used in chain sling assemblies use the WLL for the relevant chain
Specifications:
• 100% Proof loaded with full traceability
• Suitable for single and two leg chain slings Cli ih S 3620
Grade 100 Master Links – MT Main Features:
• Designed for wire rope or chain sling assemblies for two, three and four legs
• Load ratings quoted, in some cases, exceed the WLL on chain slings
• Flattened section on all sublinks for sizes up to MT-1610, except for size MT-9-10
Specifications:
• When used in chain sling assemblies use the WLL for the relevant chain size
• 100% Proof loaded with full traceability
• Complies with AS 3776:2015
Bullivants
Gunnebo Grade 100 Chain Fittings
Grade 100 Master Links – MFH Main Features:
• Designed for crane hooks DIN 15401
• Perfect balance for larger crane hooks, providing a longer service life
Specifications:
• Suitable for attachment to crane hooks
• Complies with AS 3776:2015
Grade 100 Grab Hook Clevis Type GG Main Features:
• Clevis type shortening grab hook with supporting lugs either side to prevent chain link deformation
• 100% Proof loaded with full traceability
• No reduction of Working Load Limit (WLL) due to supporting cradle lugs on either
Specifications:
• Suitable for shortening chain slings
• Complies with AS 3776:2015
Grade 100 Grab Hook Clevis Type GG with Locking Pin
Main Features:
• Clevis shortening hook with pin for extra safety
• Supporting lugs either side to prevent chain link deformation
• 100% Proof loaded with full traceability
Specifications:
Bullivants
• No reduction of working load limit
• Suitable for shortening chain slings
• Complies with AS 3776:2015
Gunnebo Grade 100 Chain Fittings
Grade 100 Self Locking Hooks Clevis Type BKG Main Features:
• Clevis self locking hook, also called safety hook
• Fluorescent yellow GrabIQ® painted
• Recessed trigger prevents damaging and snagging of the trigger
Specifications:
Grade 100 Self Locking Hooks Clevis Eye Type BK
• Retains load in the hook and will not easily snag during lifting
• Recessed trigger provides protection from potential damage
Specifications:
• Self locking makes it impossible to open under load
• Complies with AS 3776:2015
• Self locking when hook is under load
• 100% Proof loaded with full traceability
• Complies with AS 3776:2015
Grade 100 Self Locking Hooks Eye Type Grip Latch OBK
• Type OBK retains load in the hook and will not easily snag during lifting
Specifications:
• Hook comes with safety grip latch to cater for abnormal side loading
• Complies with AS 3776:2015
Bullivants
Gunnebo Grade 100 Chain Fittings
• Hook comes with safety grip latch to cater for abnormal side loading
• Grip latch design is unique to Gunnebo
Grade 100 Self Locking Hooks Clevis Type Grip Latch GBK Specifications:
• Complies with AS 3776:2015
Grade 100 Sling Hooks with Latch Type EKN
• Protected latch to minimise the risk of damage
• 100% Proof loaded with full traceability
Specifications:
• Complies with AS 3776:2015
Grade 100 Swivel Self Locking Hooks Ball Bearing BKLK
• Swivel allows load to be easily rotated
• 100% Proof loaded with full traceability
• Complies with AS 3776:20158
Bullivants
Gunnebo Grade 100 Chain Fittings
Grade 100 Foundry Hook OKE
• Wide admittance gives hook a wider variety of uses including but not exclusively foundry work
• Hooks without latches require a risk assessment to be conducted before use in accordance with AS 3775.2 Section 8.6.3 (b)
Specifications:
• Complies with AS 3776:2015
Grade 100 Midgrab Chain Shorteners MIG
• Instant mounting and positioning on any part of the chain
• Suits any short link chain
• Open/Close pin locking on the chain
• Can be set idle on the chain leg when shortening is not required
Specifications:
• Can be retro fitted on any chain sling
• Designed to prevent inadvertent chain disengagement
• Suitable for shortening chain slings and load restraint assemblies
• Complies with AS 3776:2015
Gunnebo Grade 100 Chain Fittings
Grade 100 Container Hooks CH3
• Straight type for lifts using spreader beam and 45° right/left type for lifting with angle
• Suitable for lifting containers in their lower fittings
Grade 100 Eye Type Grab Hook OG
• Eye type shortening grab hook with supporting lugs either side to prevent chain link deformation
• 100% Proof loaded with full traceability
Specifications:
• Complies with AS 3776:2015
Specifications:
• No reduction of Working Load Limit (WLL) for 8 – 20mm chain size is required
• Suitable for shortening chain slings
• Complies with AS 3776:2015
Grade 100 Sling Hook with Latch Type EGKN
• Protected latch to minimise the risk of damage
• 100% Proof loaded with full traceability
Bullivants
• Complies with AS 3776:2015
Gunnebo Grade 100 Chain Fittings
• Conventional style chain coupling link in Grade 100
• Fluorescent yellow GrabIQ® painted
• Full traceability
Grade 100 Coupling Links Specifications:
• Increased WLL compared to conventional Grade 80
• Suitable for joining chain to components
• Complies with AS 3776:2015
Grade 100 Swivel Latch Hook Ball Bearing LKNK
• Ball Bearing Swivel allows load to be easily rotated
• 100% Proof loaded with full traceability
• Complies with AS 3776:2015
