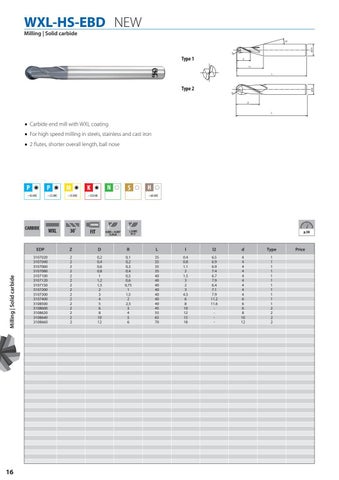

WXL-HS-EBD NEW Milling | Solid carbide
φDs
15°
R
Type 1
ℓ L₂
Type 2
φDs
L
R
ℓ
WXL-HS-EB L
Carbide end mill with WXL coating
WXL-HS-EB
For high speed milling in steels, stainless and cast iron 2 flutes, shorter overall length, ball nose
P
○ ◉
P
~45 HRC
Milling | Solid carbide
CARBIDE
16
○ ◉
M
◉
K
◉
~55 HRC
~35 HRC
~350 HB
WXL
30˚
FIT
N
○
S
○
H
○
~60 HRC
SHRINK
R 0.003~ -0.007 3≤R≤6
R
± 0.005 R<3
p.58
EDP
Z
D
R
L
l
l2
d
Type
3107020 3107040 3107060 3107080 3107100 3107120 3107150 3107200 3107300 3107400 3108500 3108600 3108620 3108640 3108660
2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
0,2 0,4 0,6 0,8 1 1,2 1,5 2 3 4 5 6 8 10 12
0,1 0,2 0,3 0,4 0,5 0,6 0,75 1 1,5 2 2,5 3 4 5 6
35 35 35 35 40 40 40 40 40 40 40 45 55 65 70
0.4 0.8 1.1 2 1.5 3 2 3 4.5 6 8 10 12 15 18
6.5 6.9 6.9 7.4 6.7 7.9 6.4 7.1 7.9 11.2 11.6 -
4 4 4 4 4 4 4 4 4 6 6 6 8 10 12
1 1 1 1 1 1 1 1 1 1 1 2 2 2 2
Price
