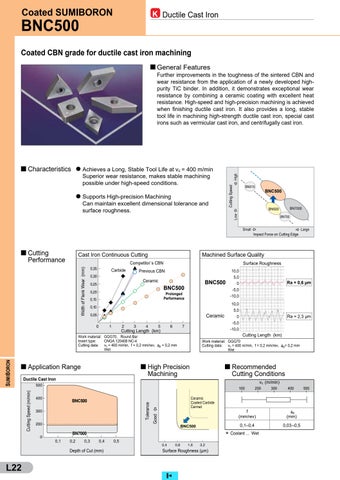

Coated SUMIBORON
K Ductile Cast Iron
BNC500
Coated CBN grade for ductile cast iron machining -
General Features
Further improvements in the toughness of the sintered CBN and wear resistance from the application of a newly developed highpurity TiC binder. In addition, it demonstrates exceptional wear resistance by combining a ceramic coating with excellent heat resistance. High-speed and high-precision machining is achieved when finishing ductile cast iron. It also provides a long, stable tool life in machining high-strength ductile cast iron, special cast irons such as vermicular cast iron, and centrifugally cast iron.
Characteristics l Achieves a Long, Stable Tool Life at vc = 400 m/min
a High
Superior wear resistance, makes stable machining possible under high-speed conditions.
Cutting Speed
BNX10
Cast Iron Continuous Cutting
Low
BN700
Carbide
Surface Roughness
Previous CBN Ceramic
BNC500
BNC500
10,0 5,0 0 -5,0 -10,0
Ra = 0,6 µm
Ceramic
10,0 5,0 0 -5,0 -10,0
Ra = 2,3 µm
Prolonged Performance
Cutting Length (km)
Application Range Ductile Cast Iron
Cutting Length (km)
Work material: GGG70 Cutting data: vc = 400 m/min, f = 0,2 mm/rev, ap= 0,2 mm Wet
High Precision Machining
-
Recommended Cutting Conditions vc (m/min) 100
Ceramic Coated Carbide Cermet
Good
BNC500
Tolerance
l
200 l
Surface Roughness (µm)
▌◄
300 l
400 l
f (mm/rev)
ap (mm)
0,1–0,4
0,03–0,5
k Coolant ... Wet
BN7000 Depth of Cut (mm)
L22
-
a
Cutting Speed (m/min)
SUMI BORON
Work material: GGG70, Round Bar Insert type: CNGA 120408 NC-4 Cutting data: vc = 400 m/min, f = 0,2 mm/rev, ap = 0,2 mm Wet
-
a Large
Impact Force on Cutting Edge
Machined Surface Quality
Competitor´s CBN Width of Flank Wear (mm)
Cutting Performance
BN7000
BN500
Small
-
BNC500
a
l Supports High-precision Machining Can maintain excellent dimensional tolerance and surface roughness.
a
-
500 l
