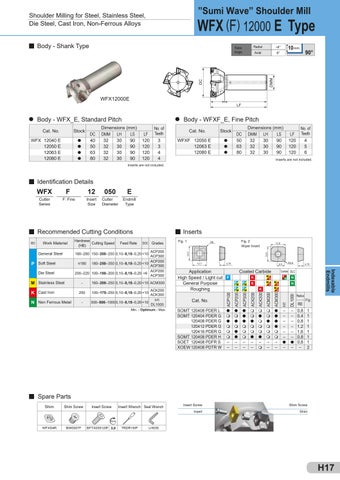

”Sumi Wave” Shoulder Mill
Shoulder Milling for Steel, Stainless Steel, Die Steel, Cast Iron, Non-Ferrous Alloys
WFX (F) 12000 E Type
Body - Shank Type
Rake Angle
Radial
-8°
Axial
8°
10 mm
90°
P
WFX12000E
Body - WFX_E, Standard Pitch Cat. No.
Stock
WFX 12040 E 12050 E 12063 E 12080 E
l l l l
DC 40 50 63 80
Body - WFXF_E, Fine Pitch
Dimensions (mm) DMM LH LS 32 30 90 32 30 90 32 30 90 32 30 90
LF 120 120 120 120
No. of Teeth 3 3 4 4
Cat. No.
Stock
WFXF 12050 E 12063 E 12080 E
l l l
Dimensions (mm) DMM LH LS 32 30 90 32 30 90 32 30 90
DC 50 63 80
LF 120 120 120
No. of Teeth 4 5 6
Inserts are not included.
Inserts are not included.
Identification Details
WFX
F
12
050
E
Cutter Series
F: Fine
Insert Size
Cutter Diameter
Endmill Type
Recommended Cutting Conditions Work Material
Hardness Cutting Speed (HB)
Feed Rate
DOC
Grades
ACP200 ACP300 ACP200 ≤180 180–250–350 0,10–0,15–0,20 <10 ACP300 ACP200 200–220 100–150–200 0,10–0,15–0,20 <6 ACP300
General Steel
Fig. 1
Fig. 2 Wiper Insert
180–280 150–200–250 0,10–0,15–0,20 <10
Min. - Optimum - Max.
SOMT 120408 PDER L SOMT 120404 PDER G 120408 PDER G 120412 PDER G 120416 PDER G SOMT 120408 PDER H SOET 120408 PDFR S XOEW 120408 PDTR W
PM
S
K
K M M
N
S
m m m – m m – m – m m m m m m – m m m m m m – m m m m – – – – – – – – m m
–
–
–
–
m
–
N N
S
–
–
DL1000
Cat. No.
M
H1
-
K
Carbide DLC
ACM300
N Non Ferrous Metal
PM
PM
S
ACM200
250
ACK200 100–175–250 0,10–0,15–0,20 <10 ACK300 H1 300–500–1000 0,10–0,15–0,20 <10 DL1000
PM
M
ACK300
K Cast Iron
160–200–250 0,10–0,15–0,20 <10 ACM300
K
ACK200
-
Coated Carbide P
ACP300
M Stainless Steel
Application High Speed / Light cut General Purpose Roughing
Indexable Endmills
Die Steel
ACP200
P Soft Steel
ACP100
ISO
Inserts
– – – – – –
Radius
RE
0,8 0,4 0,8 1,2 1,6 0,8 0,8 – –
Fig.
1 1 1 1 1 1 1 2
Spare Parts Shim
Shim Screw
Insert Screw
WFXS4R
BW0507F
BFTX03512IP 3,0
Insert Wrench Seat Wrench
TRDR15IP
Insert Screw
Shim Screw
Insert
Shim
LH035
H17
