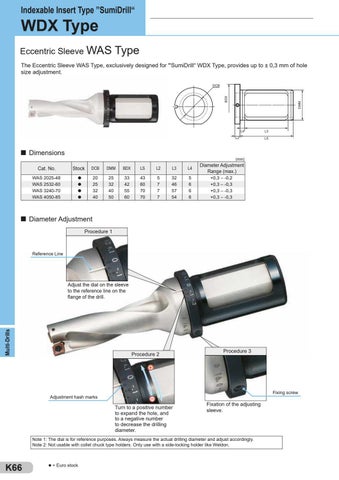

Indexable Insert Type ˮSumiDrill“
WDX Type
Eccentric Sleeve WAS
Type
The Eccentric Sleeve WAS Type, exclusively designed for ˮSumiDrill“ WDX Type, provides up to ± 0,3 mm of hole size adjustment.
DMM
BDX
DCB
L4 L2
Dimensions
L3 LS
(mm)
Cat. No.
Stock
DCB
DMM
BDX
LS
L2
L3
L4
Diameter Adjustment Range (max.)
WAS 2025-48 WAS 2532-60 WAS 3240-70 WAS 4050-85
20 25 32 40
25 32 40 50
33 42 55 60
43 60 70 70
5 7 7 7
32 46 57 54
5 6 6 6
+0,3 – -0,2 +0,3 – -0,3 +0,3 – -0,3 +0,3 – -0,3
Diameter Adjustment Procedure 1
Reference Line
Multi-Drills
Adjust the dial on the sleeve to the reference line on the flange of the drill.
Procedure 2
Procedure 3
Fixing screw
Adjustment hash marks
Turn to a positive number to expand the hole, and to a negative number to decrease the drilling diameter.
Fixation of the adjusting sleeve.
Note 1: The dial is for reference purposes. Always measure the actual drilling diameter and adjust accordingly. Note 2: Not usable with collet chuck type holders. Only use with a side-locking holder like Weldon.
K66
l = Euro stock
