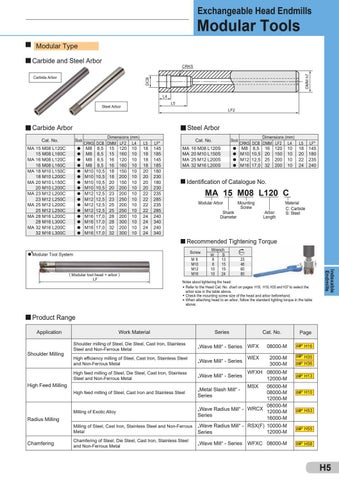

Exchangeable Head Endmills
Modular Tools Modular Type Carbide and Steel Arbor Carbide Arbor
Steel Arbor
Carbide Arbor Cat. No.
Steel Arbor Stock
MA 15 M08 L120C 15 M08 L160C MA 16 M08 L120C 16 M08 L160C MA 18 M10 L150C 18 M10 L200C MA 20 M10 L150C 20 M10 L200C MA 23 M12 L200C 23 M12 L250C MA 25 M12 L200C 25 M12 L250C MA 28 M16 L200C 28 M16 L300C MA 32 M16 L200C 32 M16 L300C
l l l l l l l l l l l l l l l l
CRKS M8 M8 M8 M8 M10 M10 M10 M10 M12 M12 M12 M12 M16 M16 M16 M16
DCB 8,5 8,5 8,5 8,5 10,5 10,5 10,5 10,5 12,5 12,5 12,5 12,5 17,0 17,0 17,0 17,0
Dimensions (mm) DMM LF2 L4 15 120 10 15 160 10 16 120 10 16 160 10 18 150 10 18 200 10 20 150 10 20 200 10 23 200 10 23 250 10 25 200 10 25 250 10 28 200 10 28 300 10 32 200 10 32 300 10
L5 18 18 18 18 20 20 20 20 22 22 22 22 24 24 24 24
LF* 145 185 145 185 180 230 180 230 235 285 235 285 240 340 240 340
Cat. No. MA MA MA MA
Stock
16 M08 L120S 20 M10 L150S 25 M12 L200S 32 M16 L200S
l l l l
CRKS M8 M10 M12 M16
DCB 8,5 10,5 12,5 17,0
Dimensions (mm) DMM LF2 L4 16 120 10 20 150 10 25 200 10 32 200 10
L5 18 20 22 24
LF* 145 180 235 240
Identification of Catalogue No.
MA 15 M08 L120 C Modular Arbor Shank Diameter
Mounting Screw
Arbor Length
Material C: Carbide S: Steel
Recommended Tightening Torque l*Modular Tool System
Screw
23 46 60 80
Notes about tightening the head: l Refer to the Head Cat. No. chart on pages H18, H19, H35 and H37 to select the arbor size in the table above. l Check the mounting screw size of the head and arbor beforehand. l When attaching head to an arbor, follow the standard tighting torque in the table above.
Indexable Endmills
( Modular tool head + arbor ) LF
M 8 M10 M12 M16
Wrench S 8 13 8 15 10 19 10 24
W
Product Range Application
Shoulder Milling
Work Material Shoulder milling of Steel, Die Steel, Cast Iron, Stainless Steel and Non-Ferrous Metal
„Wave Mill“ - Series
High efficiency milling of Steel, Cast Iron, Stainless Steel and Non-Ferrous Metal
„Wave Mill“ - Series
High feed milling of Steel, Die Steel, Cast Iron, Stainless Steel and Non-Ferrous Metal
„Wave Mill“ - Series
High feed milling of Steel, Cast Iron and Stainless Steel
„Metal Slash Mill“ Series
High Feed Milling
Milling of Exotic Alloy
Radius Milling
Chamfering
Series
Cat. No.
Page
WFX
08000-M
WEX
2000-M 3000-M
H16 H35 H36
WFXH 08000-M 12000-M
H13
MSX
06000-M 08000-M 12000-M 08000-M „Wave Radius Mill“ - WRCX 12000-M Series 16000-M
H10 H53
Milling of Steel, Cast Iron, Stainless Steel and Non-Ferrous Metal
„Wave Radius Mill“ - RSX(F) 10000-M 12000-M Series
H55
Chamfering of Steel, Die Steel, Cast Iron, Stainless Steel and Non-Ferrous Metal
„Wave Mill“ - Series
WFXC 08000-M
H58
H5
