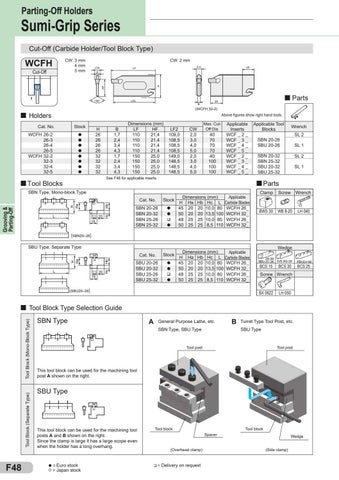

Parting-Off Holders
Sumi-Grip Series Cut-Off (Carbide Holder/Tool Block Type) CW: 3 mm 4 mm 5 mm
2,4
LF
LF2
150°
B
Parts
20
(WCFH 32-2)
Holders
Above figures show right hand tools.
Cat. No. WCFH 26-2 26-3 26-4 26-5 WCFH 32-2 32-3 32-4 32-5
Stock
H 26 26 26 26 32 32 32 32
l l l l l l l l
B 1,7 2,4 3,4 4,3 1,7 2,4 3,4 4,3
Dimensions (mm) LF HF 110 21,4 110 21,4 110 21,4 110 21,4 150 25,0 150 25,0 150 25,0 150 25,0
LF2 109,0 108,5 108,5 108,5 149,0 148,5 148,5 148,5
CW 2,0 3,0 4,0 5,0 2,0 3,0 4,0 5,0
Max. CutOff Dia.
40 70 70 70 40 100 100 100
Applicable Inserts WCF _ 2 _ WCF _ 3 _ WCF _ 4 _ WCF _ 5 _ WCF _ 2 _ WCF _ 3 _ WCF _ 4 _ WCF _ 5 _
Applicable Tool Blocks
Hb Hc
H Ha
12,5 20 18
SL 2 SL 1
SBN 20-32 SBN 25-32 SBU 20-32 SBU 25-32
SL 2 SL 1
Parts
SBN Type, Mono-block Type
L
Wrench
SBN 20-26 SBU 20-26
See F48 for applicable inserts.
Tool Blocks
Grooving & Parting-Off
20
B
HF
Cut-Off
CW: 2 mm CW
H
WCFH
Cat. No.
Stock
SBN 20-26 SBN 20-32 SBN 25-26 SBN 25-32
l l
Cat. No.
Stock
SBU 20-26 SBU 20-32 SBU 25-26 SBU 25-32
l l
q
l
Applicable Dimensions (mm) H Ha Hb Hc L Carbide Blades 45 20 20 10,0 80 WCFH 26_ 50 20 20 13,5 100 WCFH 32_ 48 25 25 10,0 80 WCFH 26_ 50 25 25 8,5 110 WCFH 32_
Clamp Screw Wrench
BWS 30
WB 8-20
LH 040
(SBN20–26)
12,5 20 18
Hc
L
Hb
H Ha
SBU Type, Separate Type
q
l
Dimensions (mm) Applicable H Ha Hb Hc L Carbide Blades 45 20 20 10,0 80 WCFH 26_ 50 20 20 13,5 100 WCFH 32_ 48 25 25 10,0 80 WCFH 26_ 50 25 25 8,5 110 WCFH 32_
(SBU20–26)
Wedge
BCS 15
BCS 20
BCS 25
Screw Wrench
BX 0622
LH 050
Tool Block (Separate Type)
Tool Block (Mono-Block Type)
Tool Block Type Selection Guide
F48
SBN Type
A
General Purpose Lathe, etc. SBN Type, SBU Type
B
Turret Type Tool Post, etc. SBU Type
Tool post
Tool post
This tool block can be used for the machining tool post A shown on the right.
SBU Type
This tool block can be used for the machining tool posts A and B shown on the right. Since the clamp is large it has a large scope even when the holder has a long overhang.
l = Euro stock = Japan stock
Tool block
Tool block Spacer
(Overhead clamp)
q=
Delivery on request
Wedge (Side clamp)
