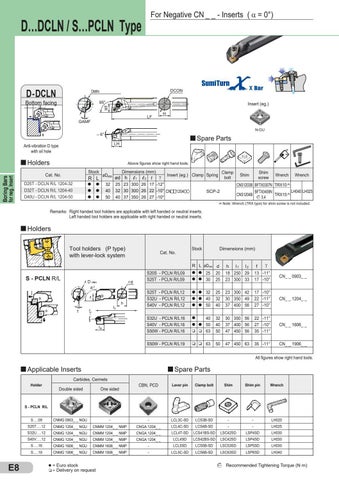

For Negative CN _ _ - Inserts ( a = 0°)
D…DCLN / S…PCLN Type
D-DCLN
DCON
DMIN
Bottom facing
95°
WF
Insert (eg.) H
LF
GAMF
N-GU
– 6°
Holders
Above figures show right hand tools.
Stock
Dimensions (mm) Clamp Shim Insert (eg.) Clamp Spring Wrench Wrench Shim bolt screw ød h l 1 l 2 f g l l 32 25 23 300 26 17 -12° CNS1203B BFTX0307N TRX10 (*) l l 40 32 30 300 26 22 -10° CN 1204 SCP-2 LH040 LH025 BFTX0409N CNS1204B TRX15 (*) l l 50 40 37 350 26 27 -10° 3,4
Cat. No.
Boring Bars for neg. Insert
Spare Parts
LH
Anti-vibration D type with oil hole
R L
D25T - DCLN R/L 1204-32 D32T - DCLN R/L 1204-40 D40U - DCLN R/L 1204-50
øDmin
* Note: Wrench (TRX type) for shim screw is not included.
( )
Remarks: Right handed tool holders are applicable with left handed or neutral inserts. Left handed tool holders are applicable with right handed or neutral inserts.
Holders Tool holders (P type) with lever-lock system
Cat. No. S20S - PCLN R/L09 S25T - PCLN R/L09
S - PCLN R/L
S25T - PCLN R/L12 S32U - PCLN R/L12 S40V - PCLN R/L12 S32U - PCLN R/L16 S40V - PCLN R/L16 S50W - PCLN R/L16 S50W - PCLN R/L19
Stock
Dimensions (mm)
R L øDmin d h l 1 l 2 f g l l 25 20 18 250 29 13 -11° l l 30 25 23 300 33 17 -10° l l 32 25 23 300 42 17 -10° l l 40 32 30 350 49 22 -11° l l 50 40 37 400 56 27 -10° l 40 32 30 350 56 22 -11° l l 50 40 37 400 56 27 -10° q q 63 50 47 450 56 35 -11° q q 63 50 47 450 63 35 -11°
CN_ _ 0903_ _
CN_ _ 1204_ _
CN_ _ 1606_ _
CN_ _ 1906_ _
All figures show right hand tools.
Applicable Inserts
Spare Parts
Carbides, Cermets
Holder
Double sided
One sided
CBN, PCD
Lever pin
Clamp bolt
Shim
Shim pin
Wrench
S - PCLN R/L
E8
CNMG 0903_ _ NGU
-
-
LCL3C-SD LCS3B-SD
-
S25T.....12
S.....09
CNMG 1204_ _ NGU
CNMM 1204_ _ NMP
CNGA 1204_ _
LCL4C-SD LCS4B-SD
-
S32U.....12
CNMG 1204_ _ NGU
CNMM 1204_ _ NMP
CNGA 1204_ _
LCL4T-SD LCS41BS-SD LSC42SD
LSP4SD
LH030
S40V.....12
CNMG 1204_ _ NGU
CNMM 1204_ _ NMP
CNGA 1204_ _
LCL4SD LCS42BS-SD LSC42SD
LSP4SD
LH030
S.....16
CNMG 1606_ _ NGU
CNMM 1606_ _ NMP
-
LCL5SD LCS5B-SD LSC53SD LSP5SD LH030
S.....19
CNMG 1906_ _ NGU
CNMM 1906_ _ NMP
-
LCL5C-SD LCS6B-SD LSC63SD LSP6SD LH040
l = Euro stock q = Delivery on request
- LH020 - LH025
Recommended Tightening Torque (N·m)
