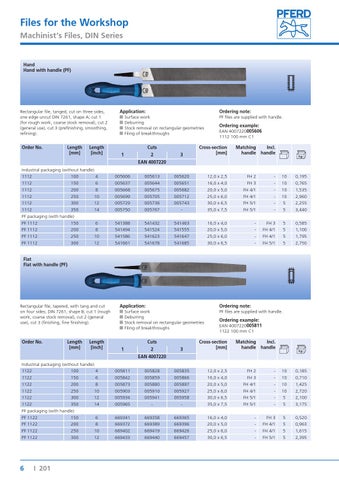

Files for the Workshop Machinist’s Files, DIN Series
Hand Hand with handle (PF)
Rectangular file, tanged, cut on three sides, one edge uncut DIN 7261, shape A; cut 1 (for rough work, coarse stock removal), cut 2 (general use), cut 3 (prefinishing, smoothing, refining). Order No.
Length [mm]
Length [inch]
Application: ■■Surface work ■■Deburring ■■Stock removal on rectangular geometries ■■Filing of breakthroughs Cuts 1
2
3
Ordering note: PF files are supplied with handle. Ordering example: EAN 4007220005606 1112 100 mm C1
Cross-section [mm]
Matching handle
Incl. handle
EAN 4007220 Industrial packaging (without handle) 1112 100 4 1112 150 6 1112 200 8 1112 250 10 1112 300 12 1112 350 14 PF packaging (with handle) PF 1112 150 6 PF 1112 200 8 PF 1112 250 10 PF 1112 300 12
005606 005637 005668 005699 005729 005750
005613 005644 005675 005705 005736 005767
005620 005651 005682 005712 005743 -
12,0 x 2,5 16,0 x 4,0 20,0 x 5,0 25,0 x 6,0 30,0 x 6,5 35,0 x 7,5
FH 2 FH 3 FH 4/1 FH 4/1 FH 5/1 FH 5/1
-
10 10 10 10 5 5
0,195 0,765 1,535 2,960 2,255 3,440
541388 541494 541586 541661
541432 541524 541623 541678
541463 541555 541647 541685
16,0 x 4,0 20,0 x 5,0 25,0 x 6,0 30,0 x 6,5
-
FH 3 FH 4/1 FH 4/1 FH 5/1
5 5 5 5
0,585 1,100 1,795 2,750
Flat Flat with handle (PF)
Rectangular file, tapered, with tang and cut on four sides; DIN 7261, shape B; cut 1 (rough work, coarse stock removal), cut 2 (general use), cut 3 (finishing, fine finishing).
Order No.
Length [mm]
Length [inch]
Application: ■■Surface work ■■Deburring ■■Stock removal on rectangular geometries ■■Filing of breakthroughs Cuts 1
2
3
Ordering note: PF files are supplied with handle. Ordering example: EAN 4007220005811 1122 100 mm C1
Cross-section [mm]
Matching handle
Incl. handle
EAN 4007220 Industrial packaging (without handle) 1122 100 4 1122 150 6 1122 200 8 1122 250 10 1122 300 12 1122 350 14 PF packaging (with handle) PF 1122 150 6 PF 1122 200 8 PF 1122 250 10 PF 1122 300 12
6
I 201
005811 005842 005873 005903 005934 005965
005828 005859 005880 005910 005941 -
005835 005866 005897 005927 005958 -
12,0 x 2,5 16,0 x 4,0 20,0 x 5,0 25,0 x 6,0 30,0 x 6,5 35,0 x 7,5
FH 2 FH 3 FH 4/1 FH 4/1 FH 5/1 FH 5/1
-
10 10 10 10 5 5
0,185 0,710 1,425 2,720 2,100 3,175
669341 669372 669402 669433
669358 669389 669419 669440
669365 669396 669426 669457
16,0 x 4,0 20,0 x 5,0 25,0 x 6,0 30,0 x 6,5
-
FH 3 FH 4/1 FH 4/1 FH 5/1
5 5 5 5
0,520 0,963 1,615 2,395
