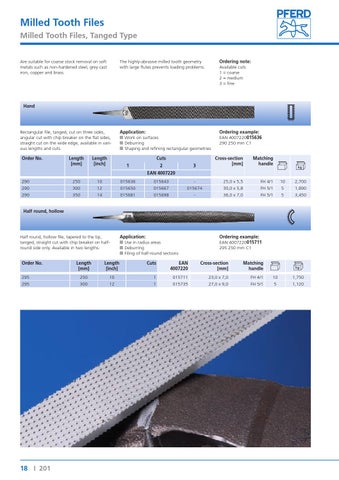

Milled Tooth Files Milled Tooth Files, Tanged Type Are suitable for coarse stock removal on soft metals such as non-hardened steel, grey cast iron, copper and brass.
The highly-abrasive milled tooth geometry with large flutes prevents loading problems.
Ordering note: Available cuts 1 = coarse 2 = medium 3 = fine
Application: ■■Work on surfaces ■■Deburring ■■Shaping and refining rectangular geometries
Ordering example: EAN 4007220015636 290 250 mm C1
Hand
Rectangular file, tanged, cut on three sides, angular cut with chip breaker on the flat sides, straight cut on the wide edge, available in various lengths and cuts. Order No.
Length [mm]
Length [inch]
Cuts 1
2
3
Cross-section [mm]
Matching handle
25,0 x 5,5 30,0 x 5,8 36,0 x 7,0
FH 4/1 FH 5/1 FH 5/1
EAN 4007220 290 290 290
250 300 350
10 12 14
015636 015650 015681
015643 015667 015698
015674 -
10 5 5
2,700 1,890 3,450
Half round, hollow
Half round, hollow file, tapered to the tip, tanged, straight cut with chip breaker on halfround side only. Available in two lengths. Order No. 295 295
18 I 201
Length [mm]
Length [inch]
250 300
10 12
Application: ■■Use in radius areas ■■Deburring ■■Filing of half-round sections
Ordering example: EAN 4007220015711 295 250 mm C1
Cuts
EAN 4007220
Cross-section [mm]
Matching handle
1 1
015711 015735
23,0 x 7,0 27,0 x 9,0
FH 4/1 FH 5/1
10 5
1,750 1,120
