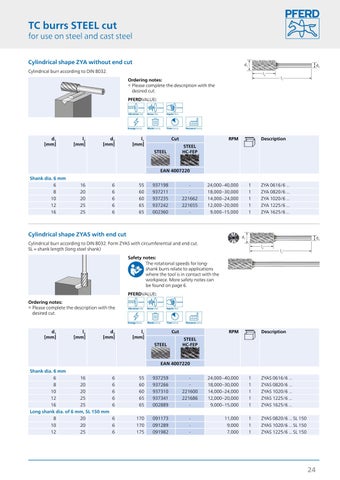

TC burrs STEEL cut
for use on steel and cast steel Cylindrical shape ZYA without end cut
d1
Cylindrical burr according to DIN 8032.
d2 l2
Ordering notes: ■ Please complete the description with the desired cut.
l1
PFERDVALUE:
d1 [mm]
Shank dia. 6 mm 6 8 10 12 16
l2 [mm]
d2 [mm]
l1 [mm]
Cut STEEL
RPM
STEEL HC-FEP
Description
EAN 4007220 16 20 20 25 25
6 6 6 6 6
55 60 60 65 65
937198 937211 937235 937242 002360
221662 221655 -
24,000–40,000 18,000–30,000 14,000–24,000 12,000–20,000 9,000–15,000
Cylindrical shape ZYAS with end cut
1 1 1 1 1
ZYA 0616/6 ... ZYA 0820/6 ... ZYA 1020/6 ... ZYA 1225/6 ... ZYA 1625/6 ...
d1
Cylindrical burr according to DIN 8032. Form ZYAS with circumferential and end cut. SL = shank length (long steel shank)
d2 l2
Safety notes: The rotational speeds for longshank burrs relate to applications where the tool is in contact with the workpiece. More safety notes can be found on page 6.
l1
PFERDVALUE: Ordering notes: ■ Please complete the description with the desired cut. d1 [mm]
l2 [mm]
d2 [mm]
Shank dia. 6 mm 6 16 8 20 10 20 12 25 16 25 Long shank dia. of 6 mm, SL 150 mm 8 20 10 20 12 25
l1 [mm]
Cut STEEL
STEEL HC-FEP
RPM
Description
EAN 4007220 6 6 6 6 6
55 60 60 65 65
937259 937266 937310 937341 002889
221600 221686 -
6 6 6
170 170 175
091173 091289 091982
-
24,000–40,000 18,000–30,000 14,000–24,000 12,000–20,000 9,000–15,000
1 1 1 1 1
ZYAS 0616/6 ... ZYAS 0820/6 ... ZYAS 1020/6 ... ZYAS 1225/6 ... ZYAS 1625/6 ...
11,000 9,000 7,000
1 1 1
ZYAS 0820/6 ... SL 150 ZYAS 1020/6 ... SL 150 ZYAS 1225/6 ... SL 150
24
