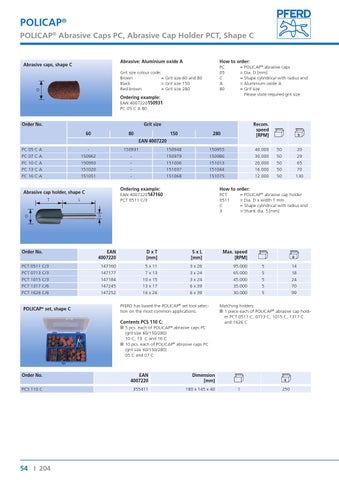

POLICAP® POLICAP® Abrasive Caps PC, Abrasive Cap Holder PCT, Shape C How to order: PC = POLICAP® abrasive caps 05 = Dia. D [mm] C = Shape cylindrical with radius end A = Aluminium oxide A 80 = Grit size Please state required grit size.
Abrasive: Aluminium oxide A
Abrasive caps, shape C
Grit size colour code: Brown = Grit size 60 and 80 Black = Grit size 150 Red-brown = Grit size 280
D
Ordering example: EAN 4007220150931 PC 05 C A 80 Order No.
Grit size 60
150
280
Recom. speed [RPM]
150948 150979 151006 151037 151068
150955 150986 151013 151044 151075
40.000 30.000 20.000 16.000 12.000
80 EAN 4007220
PC 05 C A PC 07 C A PC 10 C A PC 13 C A PC 16 C A
150962 150993 151020 151051
150931 Ordering example: EAN 4007220147160 PCT 0511 C/3
Abrasive cap holder, shape C
T D
Order No. PCT 0511 C/3 PCT 0713 C/3 PCT 1015 C/3 PCT 1317 C/6 PCT 1626 C/6 POLICAP® set, shape C
L
20 29 65 70 130
How to order: PCT = POLICAP® abrasive cap holder 0511 = Dia. D x width T mm C = Shape cylindrical with radius end 3 = Shank dia. S [mm]
S
EAN 4007220
DxT [mm]
SxL [mm]
Max. speed [RPM]
147160 147177 147184 147245 147252
5 x 11 7 x 13 10 x 15 13 x 17 16 x 26
3 x 26 3 x 24 3 x 24 6 x 39 6 x 39
95.000 65.000 45.000 35.000 30.000
PFERD has based the POLICAP® set tool selection on the most common applications. Contents PCS 110 C: ■■5 pcs. each of POLICAP® abrasive caps PC (grit size 60/150/280) 10 C, 13 C and 16 C ■■10 pcs. each of POLICAP® abrasive caps PC (grit size 60/150/280) 05 C and 07 C
Order No.
EAN 4007220
Dimension [mm]
PCS 110 C
355411
180 x 145 x 40
54 I 204
50 50 50 50 50
5 5 5 5 5
14 18 24 70 99
Matching holders: ■■1 piece each of POLICAP® abrasive cap holder PCT 0511 C, 0713 C, 1015 C, 1317 C and 1626 C
1
250
