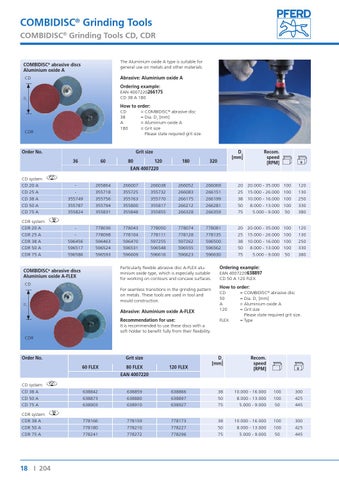

COMBIDISC® Grinding Tools COMBIDISC® Grinding Tools CD, CDR The Aluminium oxide A type is suitable for general use on metals and other materials.
COMBIDISC® abrasive discs Aluminium oxide A CD
Abrasive: Aluminium oxide A
D1
Ordering example: EAN 4007220266175 CD 38 A 180 How to order: CD = COMBIDISC® abrasive disc 38 = Dia. D1 [mm] A = Aluminium oxide A 180 = Grit size Please state required grit size.
CDR
Order No.
Grit size 36
60
80
120
180
320
D1 [mm]
Recom. speed [RPM]
EAN 4007220 CD system CD 20 A CD 25 A CD 38 A CD 50 A CD 75 A
355749 355787 355824
265864 355718 355756 355794 355831
266007 355725 355763 355800 355848
266038 355732 355770 355817 355855
266052 266083 266175 266212 266328
266069 266151 266199 266281 266359
20 25 38 50 75
20.000 - 35.000 15.000 - 26.000 10.000 - 16.000 8.000 - 13.000 5.000 - 9.000
100 100 100 100 50
120 130 250 330 380
CDR system CDR 20 A CDR 25 A CDR 38 A CDR 50 A CDR 75 A
596456 596517 596586
778036 778098 596463 596524 596593
778043 778104 596470 596531 596609
778050 778111 597255 596548 596616
778074 778128 597262 596555 596623
778081 778135 596500 596562 596630
20 25 38 50 75
20.000 - 35.000 15.000 - 26.000 10.000 - 16.000 8.000 - 13.000 5.000 - 9.000
100 100 100 100 50
120 130 250 330 380
Particularly flexible abrasive disc A-FLEX aluminium oxide type, which is especially suitable for working on contours and concave surfaces. For seamless transitions in the grinding pattern on metals. These tools are used in tool and mould construction.
COMBIDISC® abrasive discs Aluminium oxide A-FLEX CD
D1
Abrasive: Aluminium oxide A-FLEX Recommendation for use: It is recommended to use these discs with a soft holder to benefit fully from their flexibility.
Ordering example: EAN 4007220638897 CD 50 A 120 FLEX How to order: CD = COMBIDISC® abrasive disc 50 = Dia. D1 [mm] A = Aluminium oxide A 120 = Grit size Please state required grit size. FLEX = Type
CDR
Order No.
Grit size 60 FLEX
80 FLEX
120 FLEX
D1 [mm]
Recom. speed [RPM]
EAN 4007220 CD system CD 38 A CD 50 A CD 75 A
638842 638873 638903
638859 638880 638910
638866 638897 638927
38 50 75
10.000 - 16.000 8.000 - 13.000 5.000 - 9.000
100 100 50
300 425 445
CDR system CDR 38 A CDR 50 A CDR 75 A
778166 778180 778241
778159 778210 778272
778173 778227 778296
38 50 75
10.000 - 16.000 8.000 - 13.000 5.000 - 9.000
100 100 50
300 425 445
18 I 204
