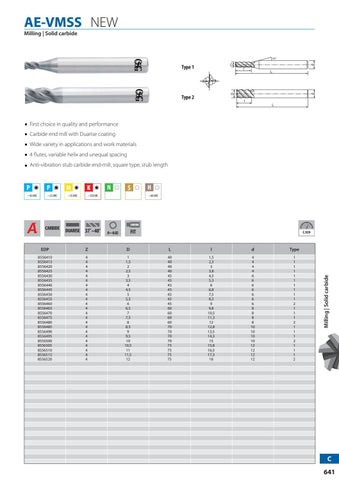

AE-VMSS NEW Milling | Solid carbide
D
Type 2
d
Type 1
D
15°
l
d
L
l
L
First choice in quality and performance Carbide end mill with Duarise coating Wide variety in applications and work materials 4 flutes, variable helix and unequal spacing Anti-vibration stub carbide end-mill, square type, stub length
○ ◉
~45 HRC
P
○ ◉
~55 HRC
CARBIDE
M
◉
K
◉
~35 HRC
~350 HB
DUARISE
37˚~40°
N
○
S
○
H
○
~60 HRC
SHRINK
FIT
0~-0.02
C.939
EDP
Z
D
L
l
d
Type
8556410 8556415 8556420 8556425 8556430 8556435 8556440 8556445 8556450 8556455 8556460 8556465 8556470 8556475 8556480 8556485 8556490 8556495 8556500 8556505 8556510 8556515 8556520
4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4
1 1,5 2 2,5 3 3,5 4 4,5 5 5,5 6 6,5 7 7,5 8 8,5 9 9,5 10 10,5 11 11,5 12
40 40 40 40 45 45 45 45 45 45 45 60 60 60 60 70 70 70 70 75 75 75 75
1,5 2,3 3 3,8 4,5 5,3 6 6,8 7,5 8,3 9 9,8 10,5 11,3 12 12,8 13,5 14,3 15 15,8 16,5 17,3 18
4 4 4 4 6 6 6 6 6 6 6 8 8 8 8 10 10 10 10 12 12 12 12
1 1 1 1 1 1 1 1 1 1 2 1 1 1 2 1 1 1 2 1 1 1 2
Milling | Solid carbide
P
C 641
