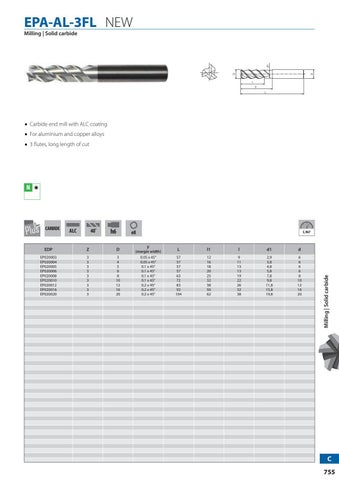

EPA-AL-3FL NEW
d
D
d1
Milling | Solid carbide
l l1 L
Carbide end mill with ALC coating For aluminium and copper alloys 3 flutes, long length of cut
◉
CARBIDE
40˚
ALC
h6
e8
EDP
Z
D
EP020003 EP020004 EP020005 EP020006 EP020008 EP020010 EP020012 EP020016 EP020020
3 3 3 3 3 3 3 3 3
3 4 5 6 8 10 12 16 20
C.967
F
(margin width) 0.05 x 45° 0.05 x 45° 0.1 x 45° 0.1 x 45° 0.1 x 45° 0.1 x 45° 0.2 x 45° 0.2 x 45° 0.2 x 45°
L
l1
l
d1
d
57 57 57 57 63 72 83 92 104
12 16 18 20 25 32 38 50 62
9 11 13 13 19 22 26 32 38
2,9 3,8 4,8 5,8 7,8 9,8 11,8 15,8 19,8
6 6 6 6 8 10 12 16 20
Milling | Solid carbide
N
C 755
