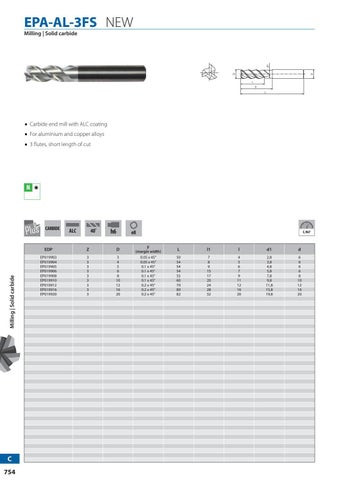

EPA-AL-3FS NEW
d
D
d1
Milling | Solid carbide
l l1 L
Carbide end mill with ALC coating For aluminium and copper alloys 3 flutes, short length of cut
N
◉
Milling | Solid carbide
CARBIDE
C 754
40˚
ALC
h6
e8
EDP
Z
D
EP019903 EP019904 EP019905 EP019906 EP019908 EP019910 EP019912 EP019916 EP019920
3 3 3 3 3 3 3 3 3
3 4 5 6 8 10 12 16 20
C.967
F
(margin width) 0.05 x 45° 0.05 x 45° 0.1 x 45° 0.1 x 45° 0.1 x 45° 0.1 x 45° 0.2 x 45° 0.2 x 45° 0.2 x 45°
L
l1
l
d1
d
50 54 54 54 55 60 70 80 82
7 8 9 15 17 20 24 28 32
4 5 6 7 9 11 12 16 20
2,8 3,8 4,8 5,8 7,8 9,8 11,8 15,8 19,8
6 6 6 6 8 10 12 16 20
